SKU: YAR209-112-2FW/VA201-SKF

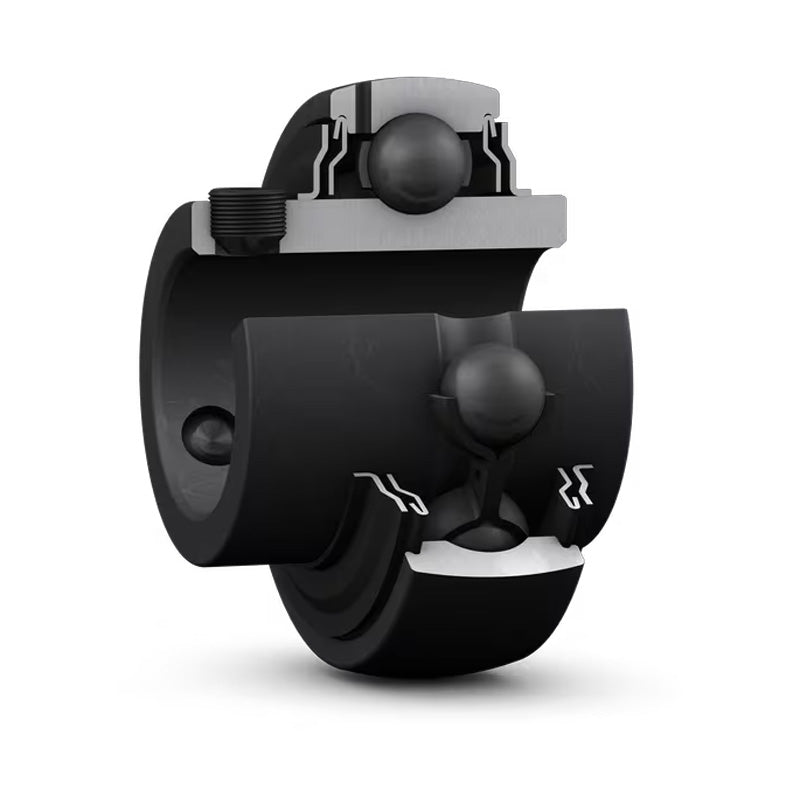

SKF YAR2091122FWVA201 Y Bearing Insert for High Temperature Application with Pressed Steel Cage and Grub Screw Location 1-3/4 inch shaft
SKF YAR2091122FWVA201 Y Bearing Insert for High Temperature Application with Pressed Steel Cage and Grub Screw Location 1-3/4 inch shaft
Out of stock
Share this product
Description
Description
|
SKF High Temperature Bearing Inserts: VA201 types have pressed steel cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -40 deg to +250 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING Benefits:High temp tolerance from -40 to +250 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 44.45mm = 1.75 (1-3/4) inch
- Temperature Range:
- High Temp
Technical
Technical
| d | 1-3/4 inch |
|---|---|
| D | 85mm |
| B | 49.2mm |
| C | 22mm |
| d1 | 56.8mm |
| s1 | 30.2mm |
| r1r2 min | 1mm |
| Dynamic load C | 33.2 kN |
| Static load Co | 21.6 kN |
| Weight | 0.62 kg |
