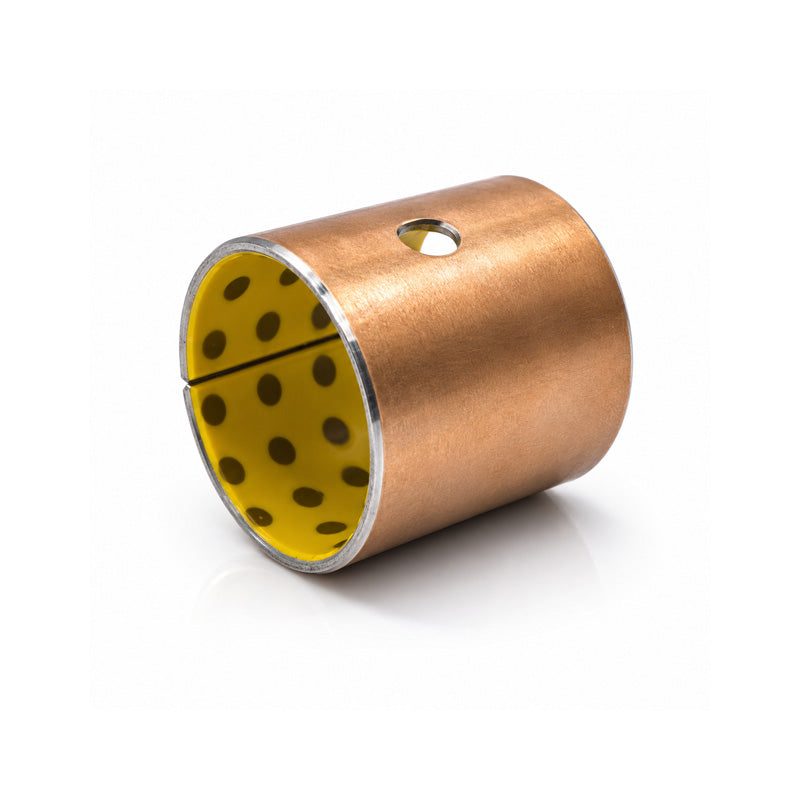

WMX130135100 Metric Wrapped Acetal Lined Plain Bush 130x135x100mm
WMX130135100 Metric Wrapped Acetal Lined Plain Bush 130x135x100mm
Out of stock
Description
Description
Wrapped Acetal Lined Plain Bushes: These bushes are high-performance, self-lubricating bearings designed for applications requiring low friction and maintenance-free operation. The WMX range is ideal for the automotive, machine building and agricultural industries, as well as any application where lubricant cannot be supplied continuously.
Benefits: Low friction, wear resistant, high load capacity
- Brand / Quality:
- Simply Plastic Bushes - High Quality
- Inside Diameter:
- 130mm
- Outside Diameter:
- 135mm
- Length:
- 100mm
Technical
Technical
| Inside Diameter (d) | 130mm |
|---|---|
| Outside Diameter (D) | 135mm |
| Length (B) | 100mm |
| Overall Length Tolerance | 99.75mm min to 100.25mm max |
| Recommended Housing Size Tolerance | 135mm min to 135.04mm max H7 |
| Shaft Diameter Tolerance | 129.937mm min to 130mm max |
| Inside Diameter when Fitted Tolerance | 130.13mm min to 130.28mm max |
| Inside Chamfers Tolerance | 0.2mm min to 1mm max |
| Outside Chamfers Tolerance | 1.2mm min to 2.4mm max |
| Max PV | 2.8 N/mm squared x m/s |
| Max Static Load | 70 N/mm squared |
| Max Dynamic Load | 70 N/mm squared |
| Max Sliding Speed -With Grease | 2.5 m/s |
| Operating Temperature | -40 to 110 Deg C |
| Thermal Conductivity | 2 W/mk |
| Coefficient of Friction - With Grease | 0.05 to 0.15 |
| Recommended Shaft Hardness | 200 min HB |
