SKU: WMOF-5060-50

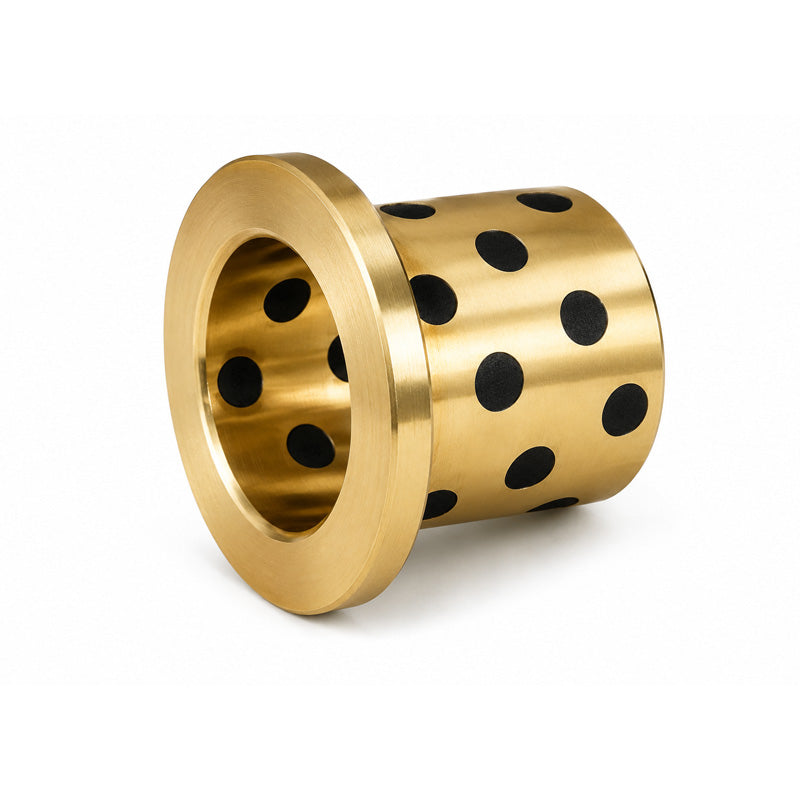

WMOF506050 Flanged Oilless Bronze Bush 50x60x50mm
WMOF506050 Flanged Oilless Bronze Bush 50x60x50mm
Equivalent to: WMOF506050
Out of stock
Description
Description
Oilless Bronze Bush Bearings: These bushes are manufactured from CuZn25Al6Mn4 high-strength bronze with specially formed solid graphite lubricant inserts. These bushes can operate at temperatures up to +300 deg C while also capable of cryogenic temperatures as low as -200 deg C. Also, these bushes provide outstanding resistance to chemicals and corrosion. Suitable for dry, wet or humid environments.
Benefits: Lubricated for life, greatly reduces the cost of maintenance, outstanding chemical and corrosion resistance
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 60mm
- Length:
- 50mm
- Item Type:
- Flanged
Technical
Technical
| d | 50mm |
|---|---|
| D | 60mm |
| L | 50mm |
| F | 75mm |
| L1 | 5mm |
| PV | 3.3 max (N/mm? x m/s) |
| Static load | 100 max (N/mm?) |
| Sliding speed | 0.3 max (m/s) |
| Operating temperature | Up to 300 (?C) |
| Coefficient of thermal expansion | 19 x 10-5/?C |
| Coefficient of friction | 0.16 |
| Hardness | 210 min (HB) |
| Tensile strength | 750 min (N/mm?) |
| Elongation | 12 min (%) |
| Density | 8 (g/cm?) |
| Max rpm | 95.493 rpm |
| Max load | 25484.2 kg |
| Housing Tolerance | H7 |
