SKU: WLT12-00-500-DURB

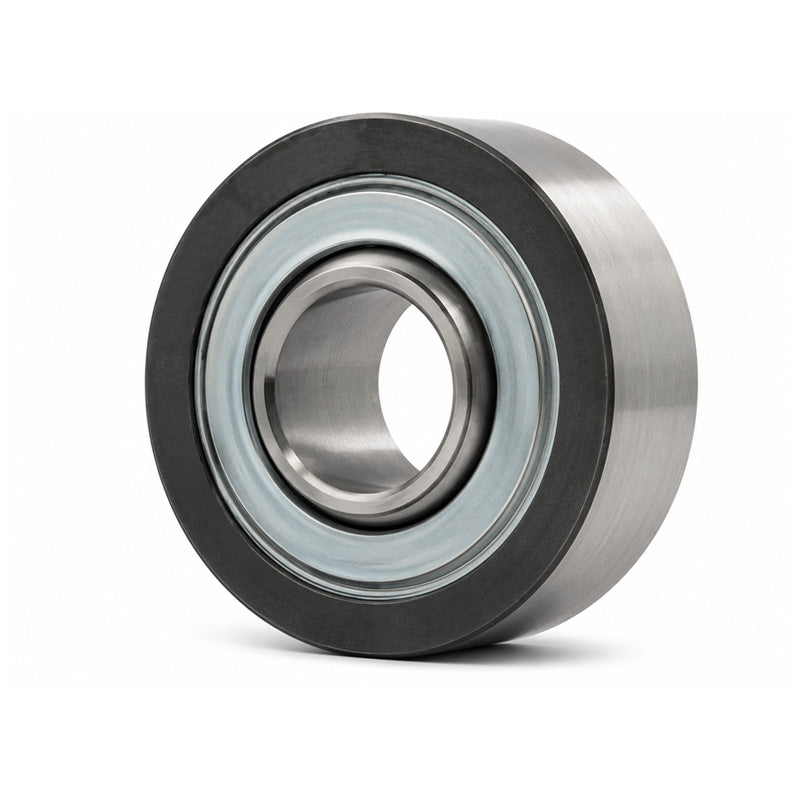

Durbal WLT12-00-500 Steel Spherical Plain Bearing with Cage 12x32x16mm
Durbal WLT12-00-500 Steel Spherical Plain Bearing with Cage 12x32x16mm
Out of stock
Share this product
Description
Description
DURBAL Heavy-Duty Caged Spherical Bearings with Integral Self-Aligning Roller Bearing: These spherical bearings are made from hardened and super finished steel. For high speeds, wide swivelling angles or rotating movements. Suitable for high loads. Low maintenance due to long-term lubrication with food-grade approval. Covering discs on both sides to prevent the penetration of coarse dirt particles inside the bearing. Temperature range: -45 deg C to +120 deg C.
- Brand / Quality:
- Durbal - High Quality
- Inside Diameter:
- 12mm
Technical
Technical
| d | 12mm |
|---|---|
| D | 32mm |
| B | 16mm |
| C | 12mm |
| d1 | 14.6mm |
| tilt angle α | 7.5 deg |
| weight | 0.06kg |
| rotational speed limit n max | 1.125 min-1 |
| basic load rating dyn C | 10.3 kN |
| basic load rating stat Co | 6.6 kN |
| radial clearance CN | 10-30 µm |
