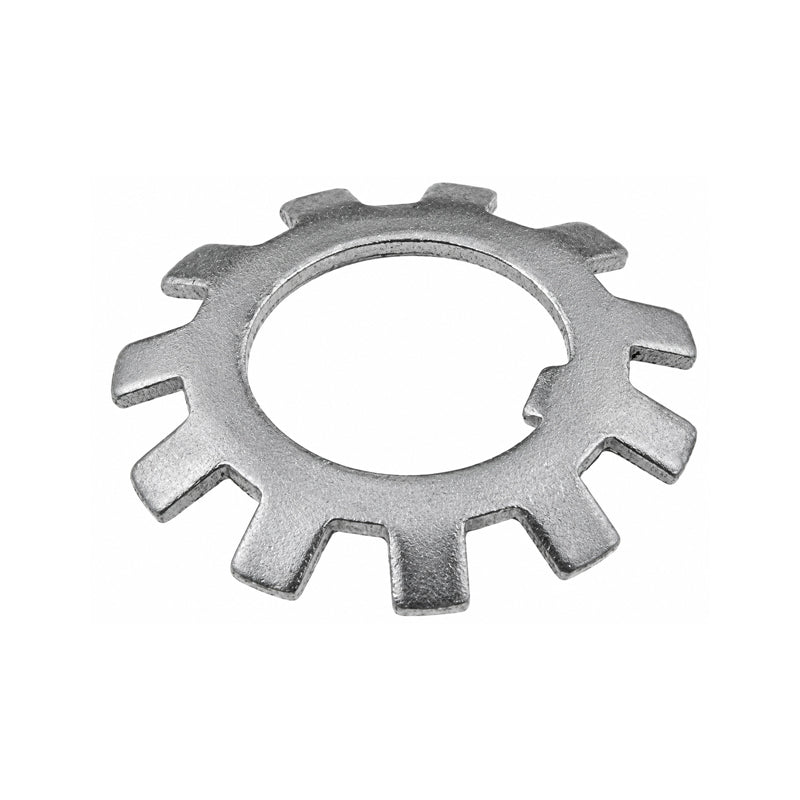

Premier Budget W034 Imperial Low Profile Locking Tab Washer 6.764x8.594x0.115 inch

Low Profile Locking Washers / Tab Washers: These are simple, stable and reliable methods of ensuring that lock nuts remain fastened securely. The central tab locates in a key-way in the shaft and the nut is fitted and tightened to the correct torque, the washer will now have one of its tabs aligned with one of the slots around the lock nut, this tab is folded over into the slot. These low-profile lock washers are used with lock nuts of the N series.
Benefits: Efficient, secure, inexpensive, removable and often re-usable.

Brand / Quality:

Premier Budget - Good Quality

Inside Diameter:

171.81mm = 6.764 inch

Outside Diameter:

218.29mm = 8.594 inch

Width:

2.92mm = 0.115 inch
