SKU: UKC307D1/H2307X-NTN

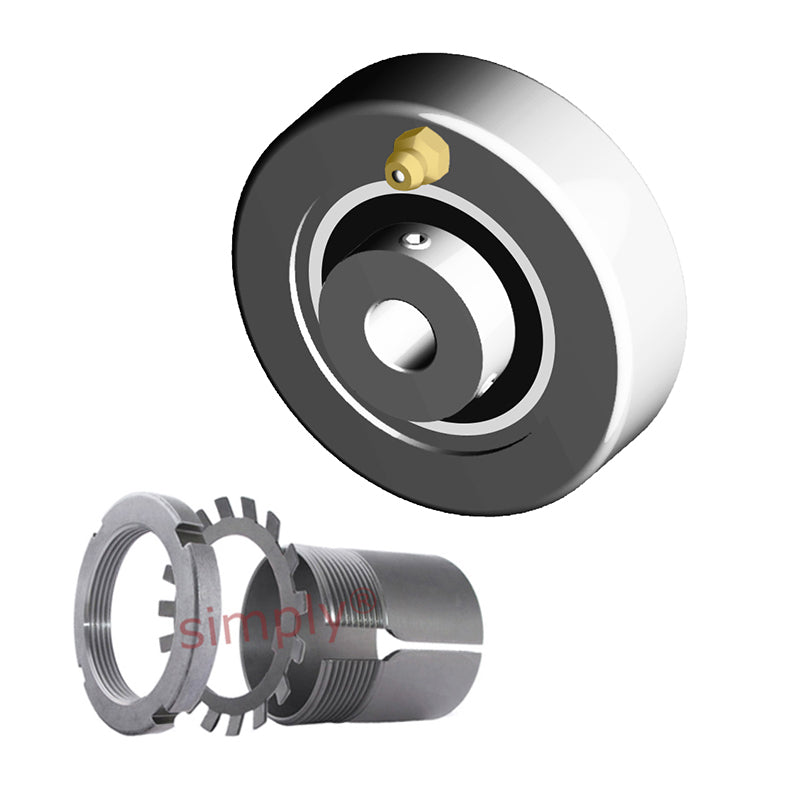

NTN UKC307D1/H2307X Metric Cast Iron Cartridge Unit with Adaptor Sleeve Mounted and 30mm Bore Insert 110mm Outside Dia - Allow 2-3 Days
NTN UKC307D1/H2307X Metric Cast Iron Cartridge Unit with Adaptor Sleeve Mounted and 30mm Bore Insert 110mm Outside Dia - Allow 2-3 Days
Out of stock
Share this product
Description
Description
UKC Series (Medium Duty) Cartridge Bearing Unit with Adaptor Sleeve Mounted: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, full width insert
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 30mm
- Style:
- UKC
Technical
Technical
| Shaft diameter | 30mm |
|---|---|
| H | 110mm |
| A | 32mm |
| r | 3mm |
| B<sub>1</sub> | 43mm |
| Mass | 1.8 kg |
