SKU: UELT207-106D1W3-NTN

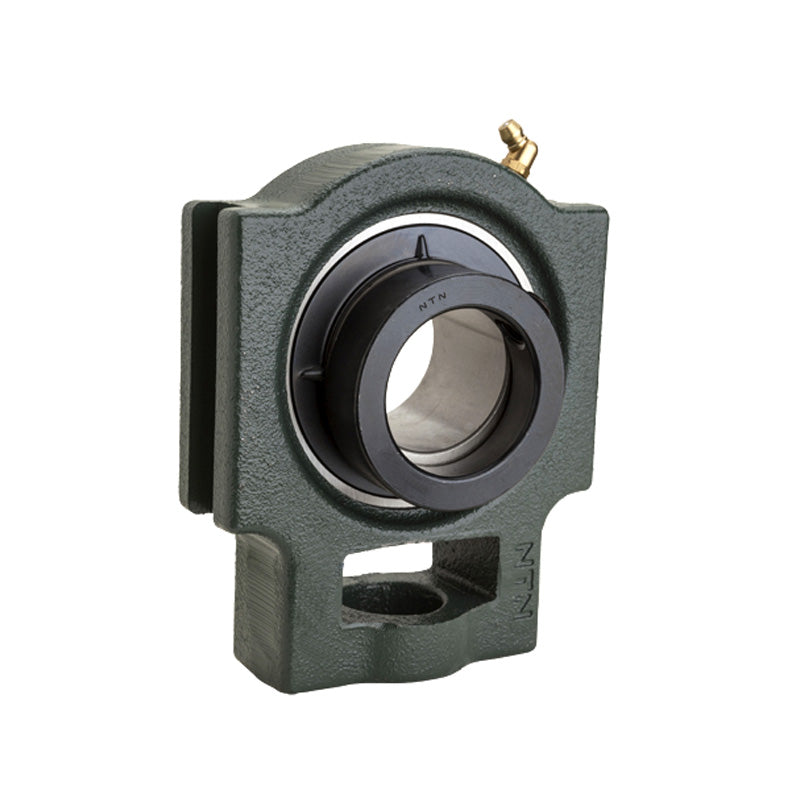

NTN UELT207-106D1W3 Imperial Cast Iron Take Up Unit with 1-3/8 inch Bore Eccentric Collar Insert - Allow 2-3 Days
NTN UELT207-106D1W3 Imperial Cast Iron Take Up Unit with 1-3/8 inch Bore Eccentric Collar Insert - Allow 2-3 Days
Out of stock
Share this product
Description
Description
UELT200 Series Cast Iron Take Up Units: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 34.93mm = 1.375 (1-3/8) inch
- Style:
- UELT
Technical
Technical
| Shaft diameter | 1-3/8 inch |
|---|---|
| N<sub>1</sub> | 5/8 inch |
| L<sub>2</sub> | 19/32 inch |
| H<sub>2</sub> | 2-17/32 inch |
| N<sub>2</sub> | 1-15/32 inch |
| N | 7/8 inch |
| L<sub>3</sub> | 2-17/32 inch |
| A<sub>1</sub> | 0.472 inch |
| H<sub>1</sub> | 3-1/2 inch |
| H | 4-1/32 inch |
| L | 5-3/32 inch |
| A<sub>2</sub> | 1-3/16 inch |
| A | 1-15/32 inch |
| r | 2 inch |
| L<sub>1</sub> | 3-1/16 inch |
| B<sub>1</sub> | 2.012 inch |
| S | 0.74 inch |
| Mass | 3.8 lbs |
