SKU: UELP318-308D1W3-NTN

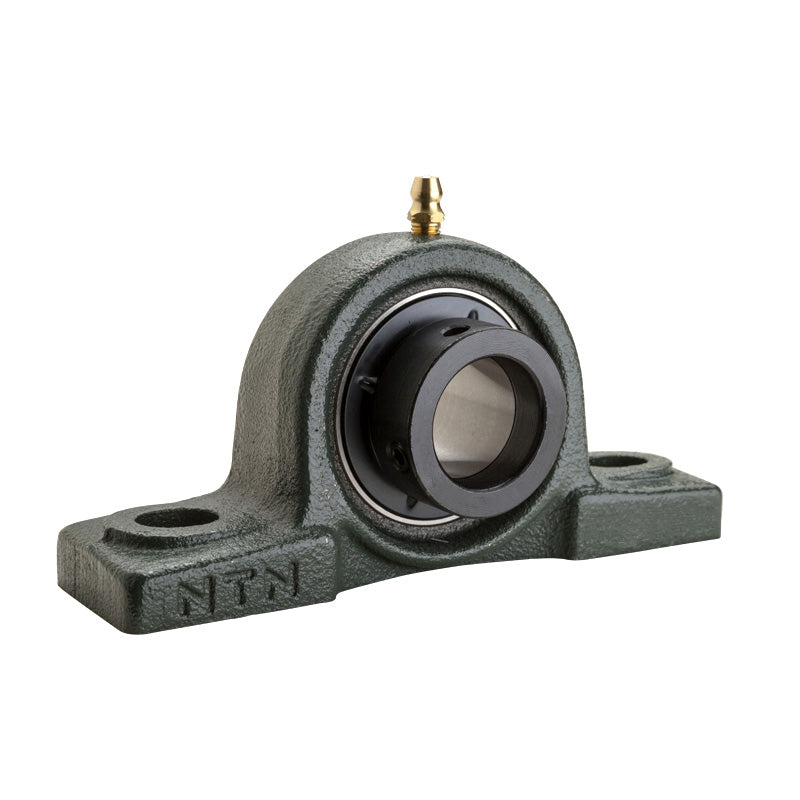

NTN UELP318-308D1W3 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 3-1/2 inch Eccentric Collar Insert - Allow 2-3 Days
NTN UELP318-308D1W3 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 3-1/2 inch Eccentric Collar Insert - Allow 2-3 Days
Out of stock
Share this product
Description
Description
UELP300 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 88.9mm = 3.5 (3-1/2) inch
- Style:
- UELP
- Bolt Hole Centres:
- 13 inch
Technical
Technical
| Shaft diameter | 3-1/2 inch |
|---|---|
| H | 4-41/64 inch |
| L | 16-15/16 inch |
| J | 13 inch |
| A | 4-11/32 inch |
| N | 1-5/16 inch |
| N<sub>1</sub> | 1-25/32 inch |
| H<sub>1</sub> | 1-25/32 inch |
| H<sub>2</sub> | 9-1/4 inch |
| L<sub>1</sub> | 4-23/32 inch |
| B<sub>1</sub> | 4.563 inch |
| S | 1.719 inch |
| Fixing bolt | 1 inch |
| Mass | 51 lbs |
