SKU: UELP213-209D1W3-NTN

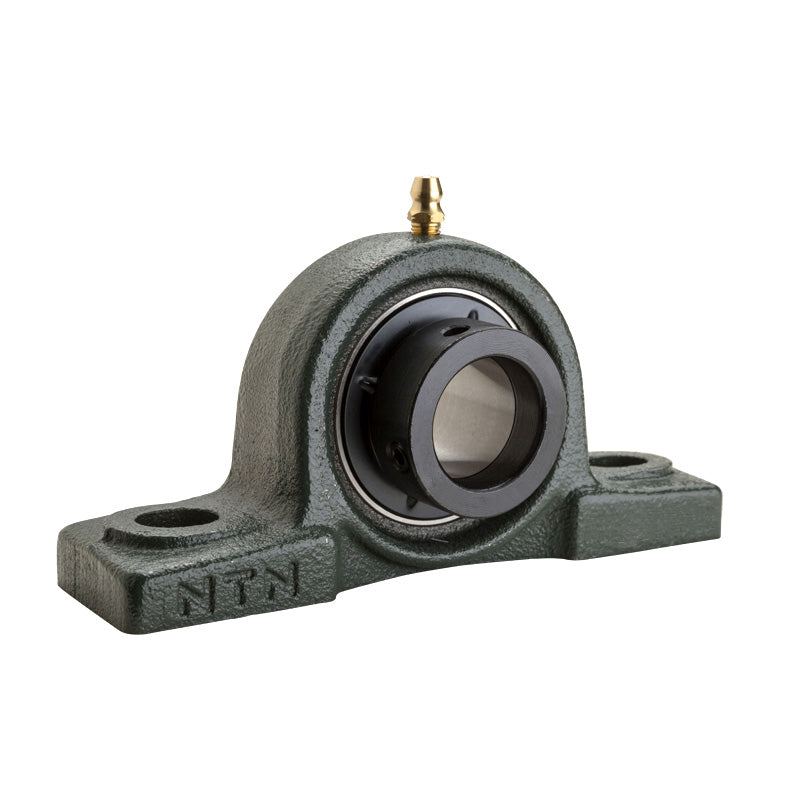

NTN UELP213-209D1W3 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 2-9/16 inch Eccentric Collar Insert - Allow 2-3 Days
NTN UELP213-209D1W3 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 2-9/16 inch Eccentric Collar Insert - Allow 2-3 Days
Out of stock
Share this product
Description
Description
UELP200 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 65.09mm = 2.563 (2-9/16) inch
- Style:
- UELP
- Bolt Hole Centres:
- 8 inch
Technical
Technical
| Shaft diameter | 2-9/16 inch |
|---|---|
| H | 3 inch |
| L | 10-7/16 inch |
| J | 8 inch |
| A | 2-3/4 inch |
| N | 31/32 inch |
| N<sub>1</sub> | 1-3/32 inch |
| H<sub>1</sub> | 1-1/16 inch |
| H<sub>2</sub> | 5-15/16 inch |
| L<sub>1</sub> | 3-1/32 inch |
| B<sub>1</sub> | 3.374 inch |
| S | 1.344 inch |
| Fixing bolt | 3/4 inch |
| Mass | 14 lbs |
