SKU: UELP212D1W3-NTN

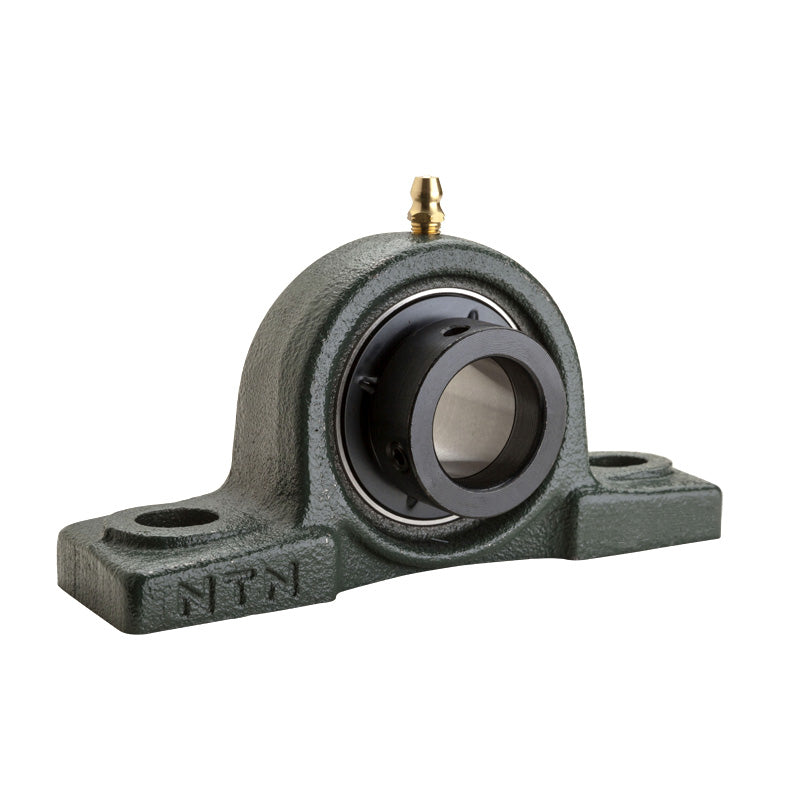

NTN UELP212D1W3 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 60mm Eccentric Collar Insert - Allow 2-3 Days
NTN UELP212D1W3 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 60mm Eccentric Collar Insert - Allow 2-3 Days
Out of stock
Share this product
Description
Description
UELP200 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 60mm
- Style:
- UELP
- Bolt Hole Centres:
- 184mm
Technical
Technical
| Shaft diameter | 60mm |
|---|---|
| H | 69.8mm |
| L | 241mm |
| J | 184mm |
| A | 70mm |
| N | 20mm |
| N<sub>1</sub> | 23mm |
| H<sub>1</sub> | 25mm |
| H<sub>2</sub> | 138mm |
| L<sub>1</sub> | 70mm |
| B<sub>1</sub> | 77.8mm |
| S | 30.95mm |
| Fixing bolt | M16 |
| Mass | 5 kg |
