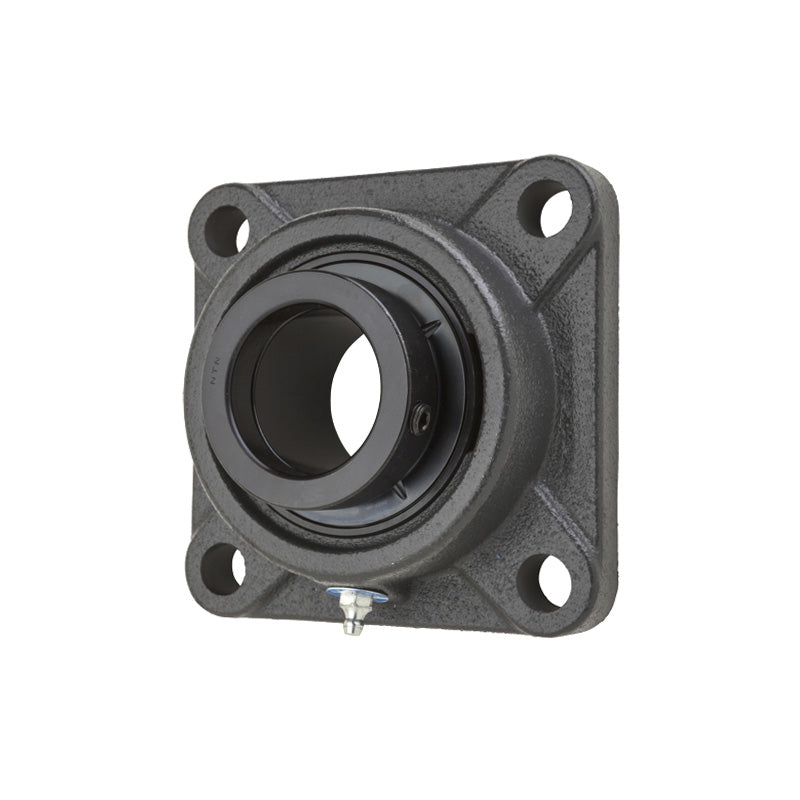

NTN UELF318-308D1W3 Imperial Four Bolt Square Cast Iron Flange Housing with 3-1/2 inch Bore Eccentric Collar Insert - Allow 2-3 Days
NTN UELF318-308D1W3 Imperial Four Bolt Square Cast Iron Flange Housing with 3-1/2 inch Bore Eccentric Collar Insert - Allow 2-3 Days
Out of stock
Description
Description
UELF300 Series 4 Bolt Cast Iron Square Flange Housing: These cast iron housing units include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 88.9mm = 3.5 (3-1/2) inch
- Style:
- UELF
- Bolt Hole Centres:
- 8-1/2 inch
Technical
Technical
| Shaft diameter | 3-1/2 inch |
|---|---|
| L | 11-1/32 inch |
| J | 8-1/2 inch |
| A<sub>2</sub> | 1-47/64 inch |
| A<sub>1</sub> | 1-3/16 inch |
| A | 3 inch |
| N | 1-3/8 inch |
| A<sub>0</sub> | 4-37/64 inch |
| B<sub>1</sub> | 4.563 inch |
| S | 1.719 inch |
| F min. | 4-59/64 inch |
| Fixing bolt | 1-1/8 inch |
| Mass | 44 lbs |
