SKU: UCT.211-32.TS.CHAL

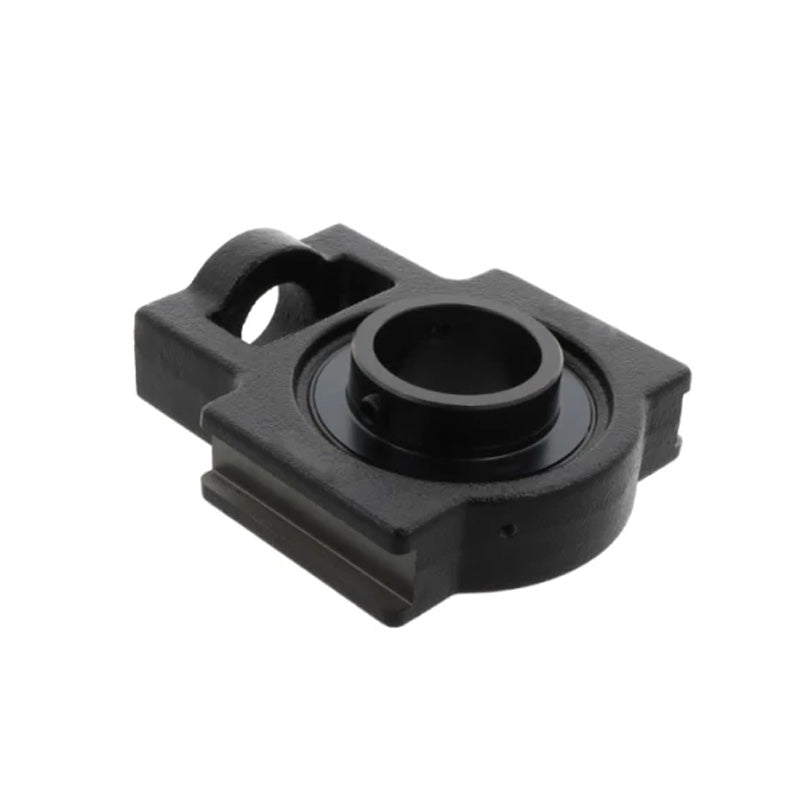

Challenge / FK UCT211-32 Imperial Cast Iron Take Up Unit Housing with 2 inch Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Challenge / FK UCT211-32 Imperial Cast Iron Take Up Unit Housing with 2 inch Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Out of stock
Share this product
Description
Description
UCT Cast Iron Take Up Unit Housing: These normal-duty bearing units are fitted with a triple lip seal in a cast iron housing and includes a grease nipple to facilitate re-lubrication. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
- Brand / Quality:
- Challenge / FK - Good Quality
- Inside Diameter:
- 50.8mm = 2 inch
- Style:
- UCT
Technical
Technical
| Shaft Diameter d | 2 inch |
|---|---|
| Nut Slot Width o | 25mm |
| Distance g | 19mm |
| Dimention p | 102mm |
| Dimention q | 64mm |
| Hole s | 35mm |
| Dimention b | 95mm |
| Slot Width k | 22mm |
| Distance Between Slots e | 130mm |
| Overall Casting Depth a | 146mm |
| Width w | 171mm |
| Diameter j | 64mm |
| Casting Width at Slots l | 41mm |
| Dimension h | 106mm |
| Grub Screws x 2 | 3/8 - 24UNF |
| Load Rating (Dynamic) | 3400kg |
| Load Rating (Static) | 2550kg |
| Max Speed | 1600 rev/min |
| Grease Nipple Thread Size | M8 |
| Working Temperature | -30°C to +120°C |
| Insert No | UC211-32 |
| Housing No | T211 |
