SKU: UCT.204-12.TS.CHAL

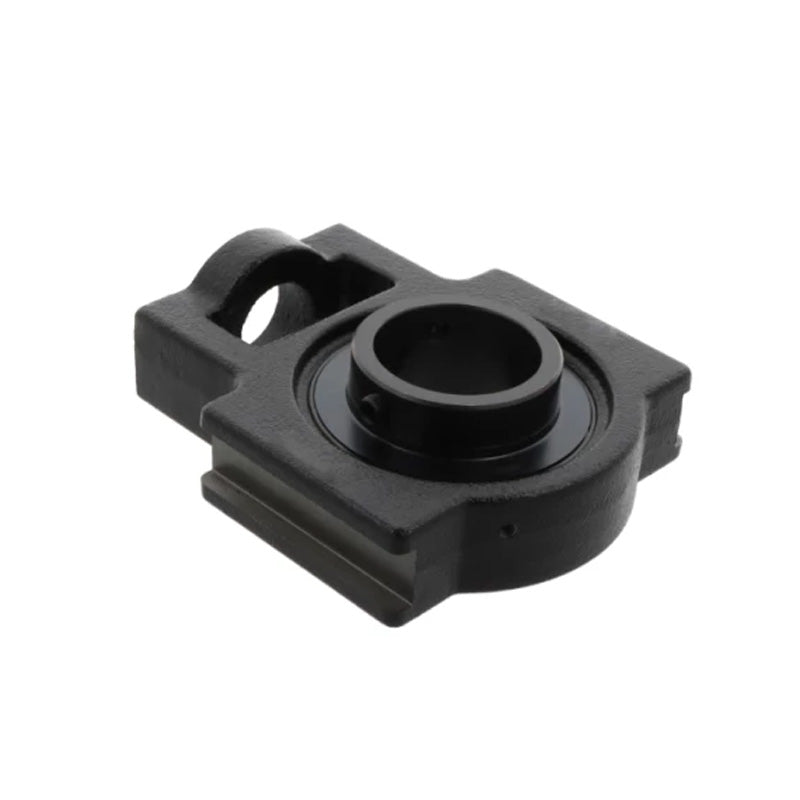

Challenge / FK UCT204-12 Imperial Cast Iron Take Up Unit Housing with 3/4 inch Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use

Challenge / FK UCT204-12 Imperial Cast Iron Take Up Unit Housing with 3/4 inch Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use

Out of stock


Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Shaft Diameter d 3/4 inch
Nut Slot Width o 16mm
Distance g 10mm
Dimention p 51mm
Dimention q 32mm
Hole s 19mm
Dimention b 51mm
Slot Width k 12mm
Distance Between Slots e 76mm
Overall Casting Depth a 89mm
Width w 94mm
Diameter j 32mm
Casting Width at Slots l 24mm
Dimension h 61mm
Grub Screws x 2 1/4 - 28UNF
Load Rating (Dynamic) 1000kg
Load Rating (Static) 630kg
Max Speed 4000 rev/min
Grease Nipple Thread Size M6
Working Temperature -30°C to +120°C
Insert No UC204-12
Housing No T204
