SKU: UCPX.09-27

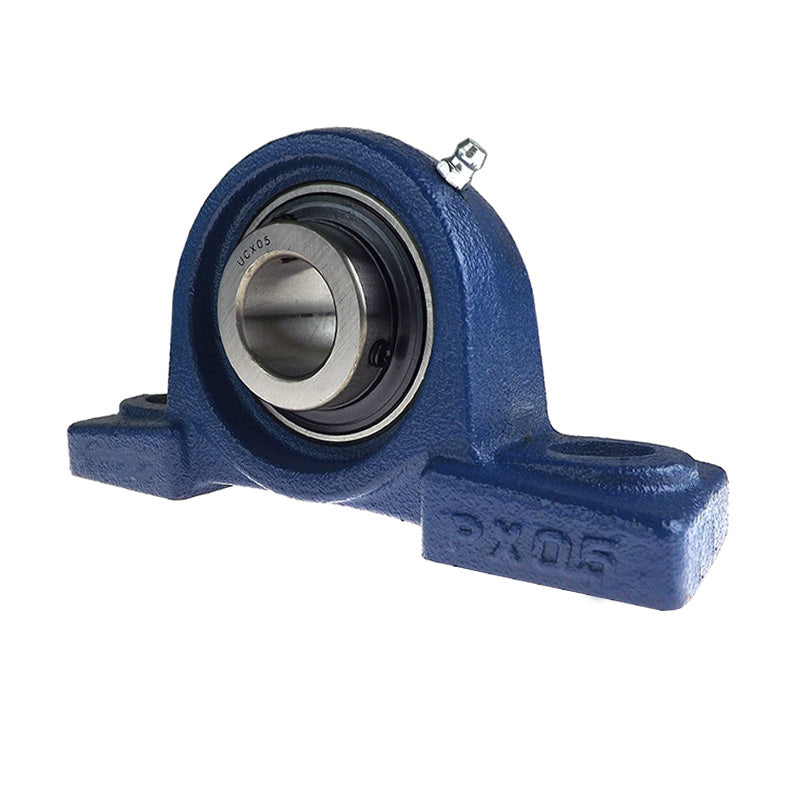

UCPX09-27 Imperial Two Bolt Cast Iron Pillow / Plummer Block Housing with 1-11/16 inch Bore Insert
UCPX09-27 Imperial Two Bolt Cast Iron Pillow / Plummer Block Housing with 1-11/16 inch Bore Insert
Out of stock
Description
Description
|
UCPX or MP Series Plummer / Pillow Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 42.86mm = 1.687 (1-11/16) inch
- Style:
- UCPX
- Bolt Hole Centres:
- 156mm
Technical
Technical
| d | 1-11/16 inch |
|---|---|
| h | 58.7mm |
| a | 222mm |
| e | 156mm |
| b | 67mm |
| s2 | 33mm |
| s1 | 20mm |
| g | 26mm |
| w | 116mm |
| B1 | 61.6mm |
| n | 19mm |
| Bolt Size | M16 |
| Weight | 3.6 kg |
| Dynamic load | 2750 kgf |
| Static load | 2020 kgf |
