SKU: UCP.216-50

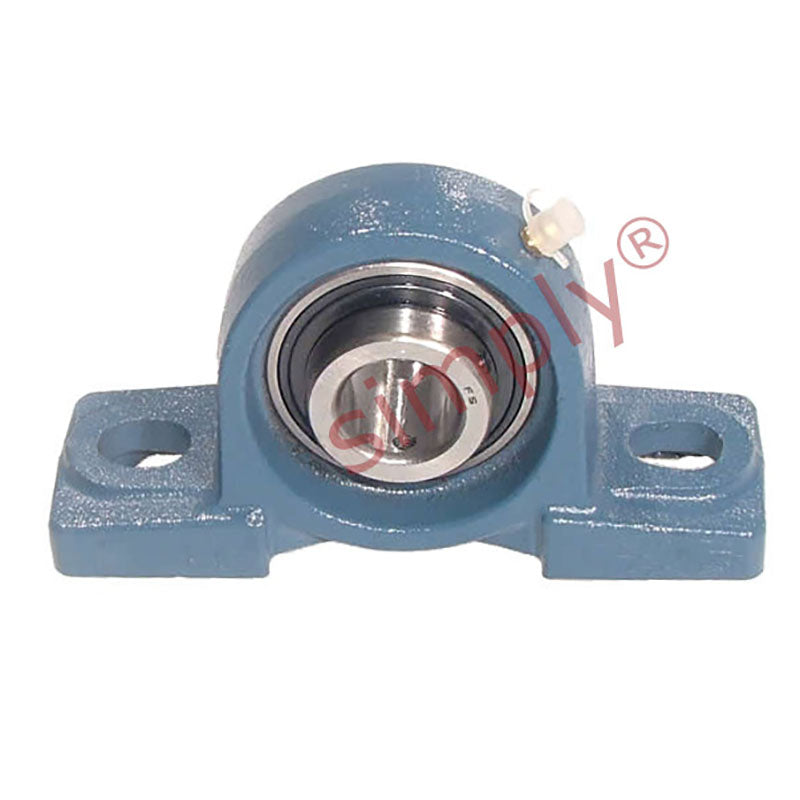

UCP216-50 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 3-1/8 inch Bore Insert
UCP216-50 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 3-1/8 inch Bore Insert
Out of stock
Description
Description
|
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 79.38mm = 3.125 (3-1/8) inch
- Style:
- UCP
- Bolt Hole Centres:
- 232mm
Technical
Technical
| d | 3-1/8 inch |
|---|---|
| h | 88.9mm |
| a | 292mm |
| e | 232mm |
| b | 78mm |
| s2 | 31mm |
| s1 | 25mm |
| g | 30mm |
| w | 175mm |
| B1 | 82.6mm |
| n | 33.3mm |
| Bolt Size | M20 |
| Weight | 9 kg |
| Dynamic load | 5700 kgf |
| Static load | 4550 kgf |
