SKU: UCFL324

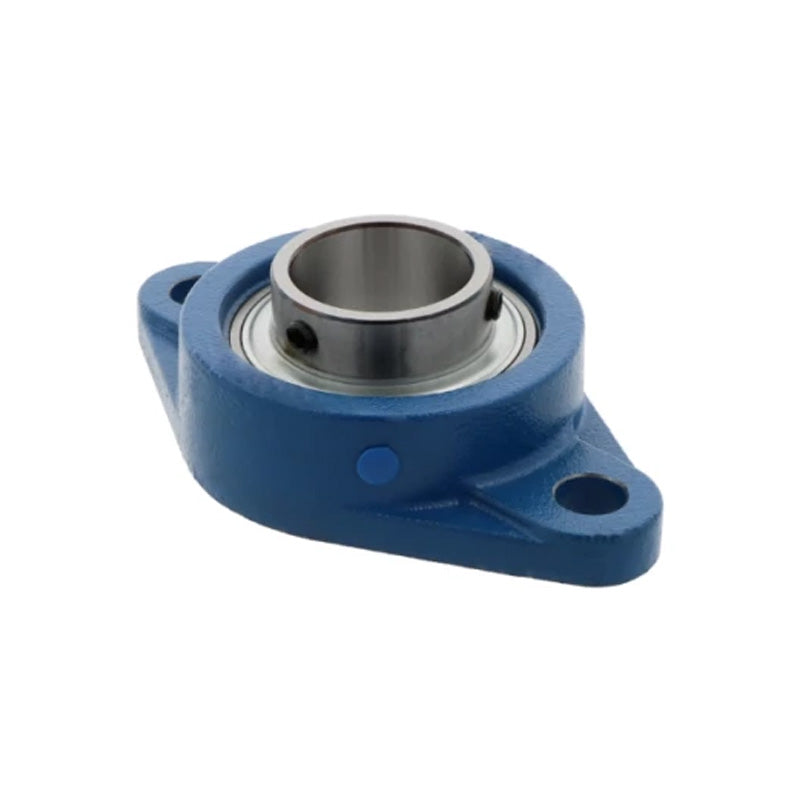

UCFL324 Heavy Duty Metric Two Bolt Cast Iron Oval Housing with 120mm Bore
UCFL324 Heavy Duty Metric Two Bolt Cast Iron Oval Housing with 120mm Bore
Out of stock
Share this product
Description
Description
UCFL300 Series Heavy Duty 2 Bolt Oval Housings: These heavy-duty bearing units are supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 120mm
- Style:
- UCFL
- Bolt Hole Centres:
- 430mm
Technical
Technical
| d | 120mm |
|---|---|
| a | 520mm |
| e | 430mm |
| i | 65mm |
| g | 48mm |
| l | 110mm |
| s | 47mm |
| b | 330mm |
| z | 140mm |
| B | 126mm |
| n | 51mm |
| Bolt size | M42 |
| Bearing no | UC324 |
| Housing no | FL324 |
| Weight | 46.47 kg |
