SKU: UCFL.216-50

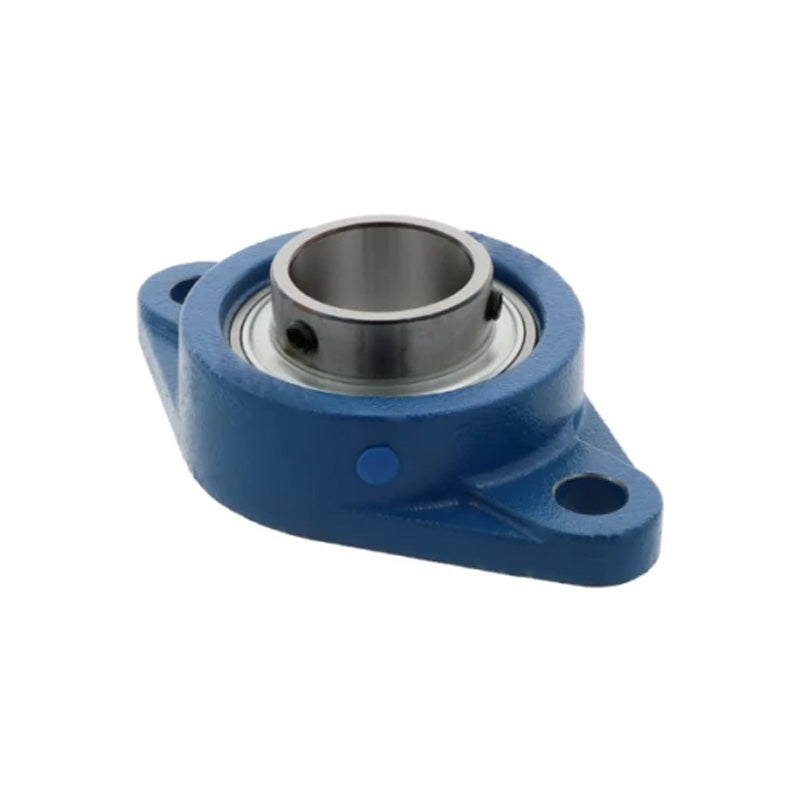

UCFL216-50 Imperial Two Bolt Oval Cast Iron Flange Housing with 3-1/8 inch Bore Insert
UCFL216-50 Imperial Two Bolt Oval Cast Iron Flange Housing with 3-1/8 inch Bore Insert
Out of stock
Description
Description
|
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 79.38mm = 3.125 (3-1/8) inch
- Style:
- UCFL
- Bolt Hole Centres:
- 233mm
Technical
Technical
| d | 3-1/8 inch |
|---|---|
| a | 290mm |
| e | 233mm |
| i | 35mm |
| g | 20mm |
| L | 59mm |
| S | 25mm |
| b | 180mm |
| z | 84.3mm |
| B1 | 82.6mm |
| n | 33.3mm |
| Bolt Size | M22 |
| Weight | 7.9 kg |
| Dynamic load | 5700 kgf |
| Static load | 4550 kgf |
