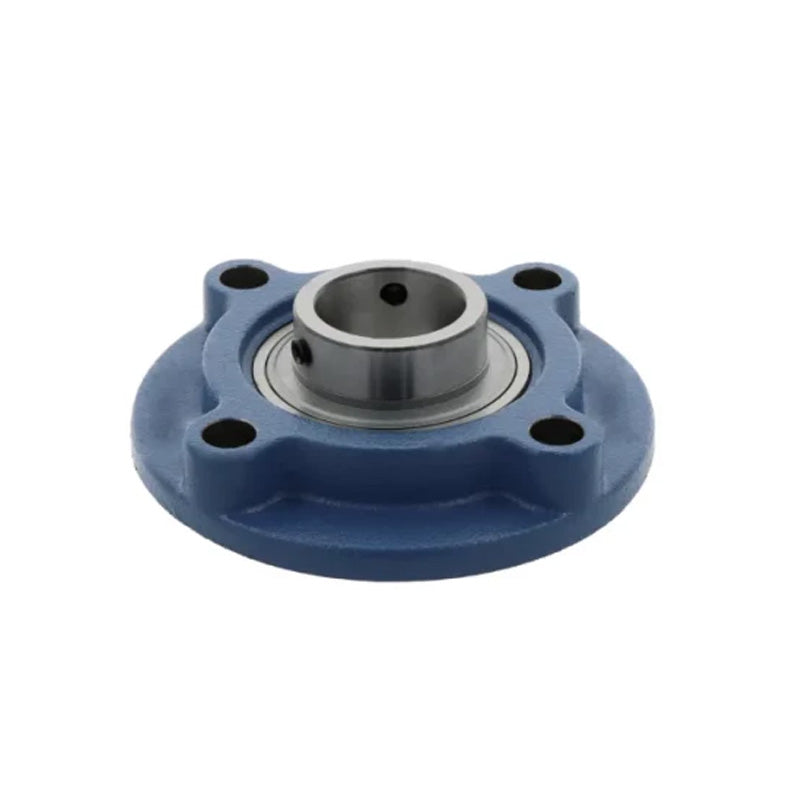

UCFCX06-17 Imperial Four Bolt Cast Iron Round Flanged Housing with 1-1/16 inch Insert

UCFCX Series Medium Duty 4 Bolt Round Housings: These medium-duty bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing

Brand / Quality:

EU Budget - Economy Quality

Inside Diameter:

26.99mm = 1.063 (1-1/16) inch

Style:

UCFCX

Pitch Circle Diameter:

74.22mm = 2.922 (2-59/64) inch
