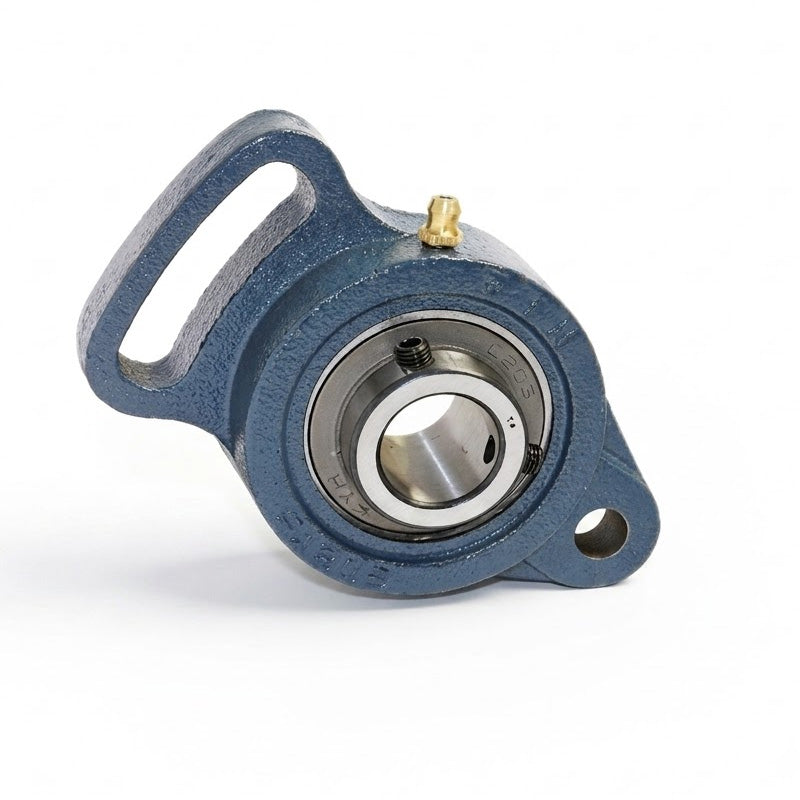

UCFA202-9 Imperial Cast Iron Adjustable Flange Unit with 9/16 inch Insert

UCFA200 Series Normal Duty Adjustable Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the adjustable flange housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing

Brand / Quality:

EU Budget - Economy Quality

Inside Diameter:

14.29mm = 0.563 (9/16) inch

Style:

UCFA

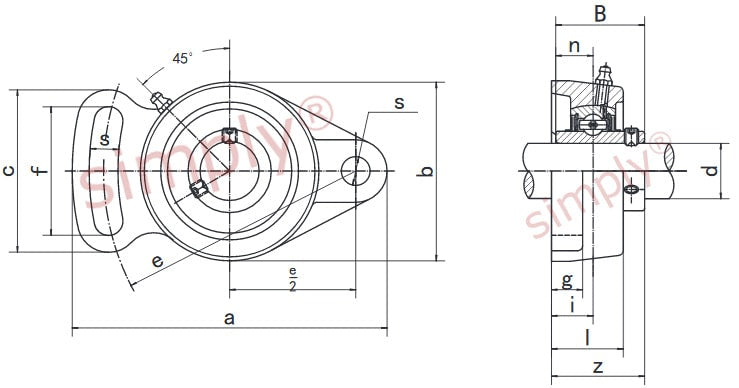

Bolt Hole Centres:

78.18mm = 3.078 (3-5/64) inch
