SKU: UCF317-52

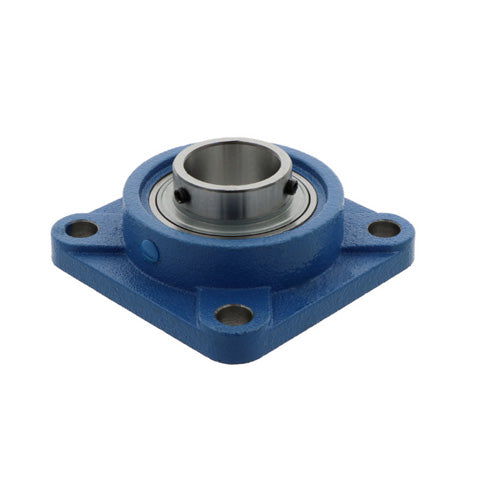

UCF317-52 Imperial Four Bolt Square Cast Iron Flange Housing with 3-1/4 inch Bore Insert
UCF317-52 Imperial Four Bolt Square Cast Iron Flange Housing with 3-1/4 inch Bore Insert
Out of stock
Description
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 82.55mm = 3.25 (3-1/4) inch
- Style:
- UCF
- Bolt Hole Centres:
- 204mm
Technical
Technical
| d | 3-1/4 inch |
|---|---|
| a | 260mm |
| e | 204mm |
| i | 44mm |
| g | 27mm |
| l | 74mm |
| s | 31mm |
| z | 100mm |
| B | 96mm |
| n | 40mm |
| Bolt size | M27 |
| Bearing no. | UC317-52 |
| Housing no. | F317 |
| Weight | 15.3 kg |
