SKU: UCF315-46

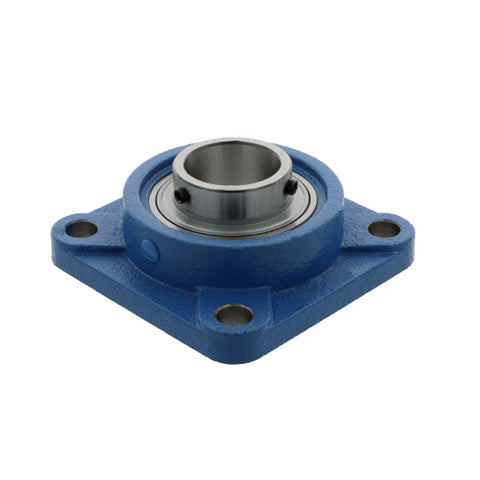

UCF315-46 Imperial Four Bolt Square Cast Iron Flange Housing with 2-7/8 inch Bore Insert
UCF315-46 Imperial Four Bolt Square Cast Iron Flange Housing with 2-7/8 inch Bore Insert
Out of stock
Description
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 73.03mm = 2.875 (2-7/8) inch
- Style:
- UCF
- Bolt Hole Centres:
- 184mm
Technical
Technical
| d | 2-7/8 inch |
|---|---|
| a | 236mm |
| e | 184mm |
| i | 39mm |
| g | 25mm |
| l | 66mm |
| s | 25mm |
| z | 89mm |
| B | 82mm |
| n | 32mm |
| Bolt size | M22 |
| Bearing no. | UC315-46 |
| Housing no. | F315 |
| Weight | 11 kg |
