SKU: UCF307-20

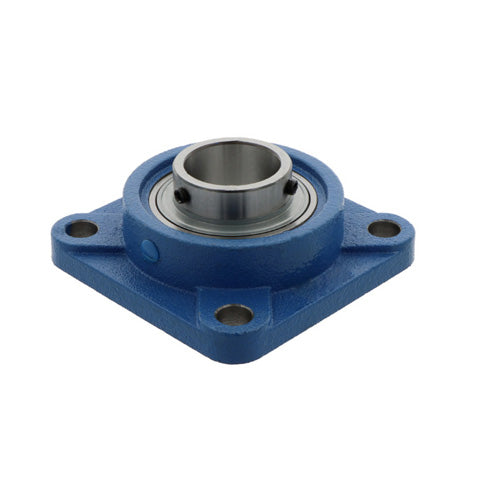

UCF307-20 Imperial Four Bolt Square Cast Iron Flange Housing with 1-1/4 inch Bore Insert
UCF307-20 Imperial Four Bolt Square Cast Iron Flange Housing with 1-1/4 inch Bore Insert
Out of stock
Description
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Style:
- UCF
- Bolt Hole Centres:
- 100mm
Technical
Technical
| d | 1-1/4 inch |
|---|---|
| a | 135mm |
| e | 100mm |
| i | 20mm |
| g | 16mm |
| l | 36mm |
| s | 19mm |
| z | 49mm |
| B | 48mm |
| n | 19mm |
| Bolt size | M16 |
| Bearing no. | UC307-20 |
| Housing no. | F307 |
| Weight | 2 kg |
