SKU: UC.214-44.TS.CHAL

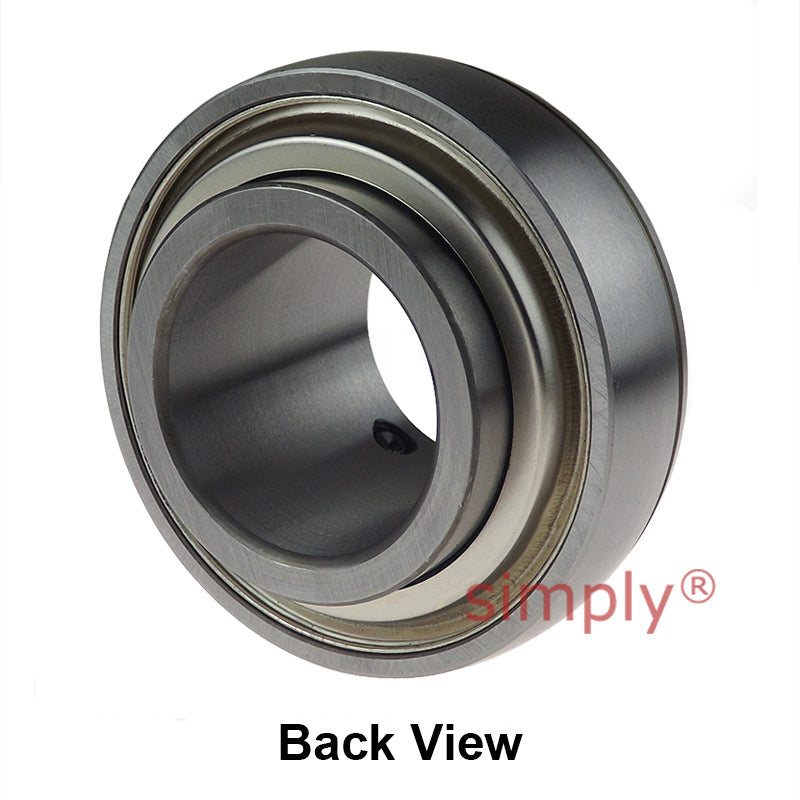

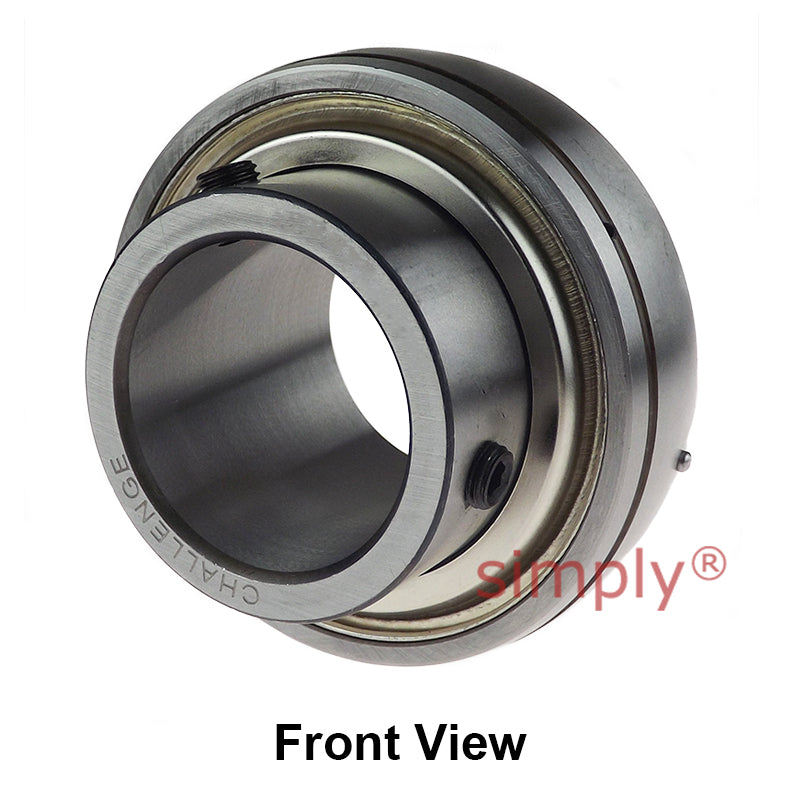

Challenge UC214-44 Imperial Insert with Grub Screws with 2-3/4 inch Bore 125mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Challenge UC214-44 Imperial Insert with Grub Screws with 2-3/4 inch Bore 125mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Out of stock
Description
Description
UC Insert with Grub Screws: These normal-duty bearing units are fitted with a triple lip seal. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. Also available as a complete housing assembly.
Benefits: High tolerance to harsh environments, cost effective bearing, re-lubricatable, grub screw fixing
- Brand / Quality:
- Challenge - Good Quality
- Inside Diameter:
- 69.85mm = 2.75 (2-3/4) inch
- Style:
- UC
Technical
Technical
| Shaft Diameter d | 2-3/4 inch |
|---|---|
| Outside Diameter D | 125mm |
| Overall Width Bi | 74.6mm |
| Inner Race Width Be | 30mm |
| Back of Bearing to Centre Line n | 30.2mm |
| Front of Bearing to Centre Line m | 44.4mm |
| Dimension G | 12mm |
| Grub Screws x 2 | 7/16 - 20UNF inch |
| Load Rating (Dynamic) | 4870kg |
| Load Rating (Static) | 3810kg |
| Max Speed | 1300 rev/min |
| Grease Nipple Thread Size | M8 |
| Working Temperature | -30°C to +120°C |
