SKU: TSFL28C-ISB
ISB TSFL28C Left Hand Maintenance Free Steel/PTFE Lined Plain Female Rod End M28 Thread
ISB TSFL28C Left Hand Maintenance Free Steel/PTFE Lined Plain Female Rod End M28 Thread
Equivalent to: TSFL28C
Out of stock
Share this product
Description
Description
TSF - TSM Series Rod End Bearings:: This series is constructed with C 45 improved and forged steel; the surfaces are protected from external corrosive agents, thanks to a galvanised zinc covering. They are available with internal and external threading, to the right and the left and they are provided with greasers or bores for lubrication.
- Brand / Quality:
- ISB-Good Quality
- Thread Size:
- M27x2
- Thread M / F:
- Female
- Thread Direction:
- Left Hand
- Bore:
- 28
- Inside Diameter:
- 28
- Material:
- Steel/PTFE Lined

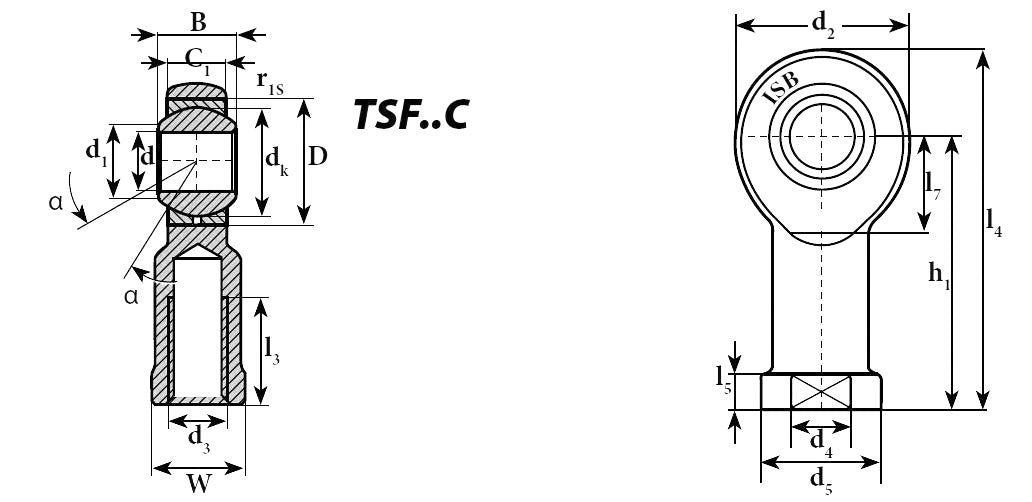

Technical
Technical
| d | 28mm |
|---|---|
| d1 | 32.3mm |
| d2 | 66mm |
| d3 | M 27x2mm |
| d4 | 37mm |
| d5 | 46mm |
| dk | 47.59mm |
| B | 35mm |
| C1 | 26mm |
| h1 | 103mm |
| I3 | 41mm |
| I4 | 136mm |
| I5 | 14mm |
| I7 | 34mm |
| W | 41mm |
| α | 15° |
| r 1s min | 0.3Nmax Min -1 |
| Dynamic C | 66KN |
| Static C0 | 69KN |
| Weight | 1.2Kg |
