SKU: TSF3R-ISB
ISB TSF3R Right Hand Maintenance Free Steel/PTFE Lined Plain Female Rod End M3 Thread
ISB TSF3R Right Hand Maintenance Free Steel/PTFE Lined Plain Female Rod End M3 Thread
Equivalent to: TSF3R
Out of stock
Share this product
Description
Description
TSF - TSM Series Rod End Bearings:: This series is constructed with C 45 improved and forged steel; the surfaces are protected from external corrosive agents, thanks to a galvanised zinc covering. They are available with internal and external threading, to the right and the left and they are provided with greasers or bores for lubrication.
- Brand / Quality:
- ISB-Good Quality
- Thread Size:
- M3x0.5
- Thread M / F:
- Female
- Thread Direction:
- Right Hand
- Bore:
- 3
- Inside Diameter:
- 3
- Material:
- Steel/PTFE Lined

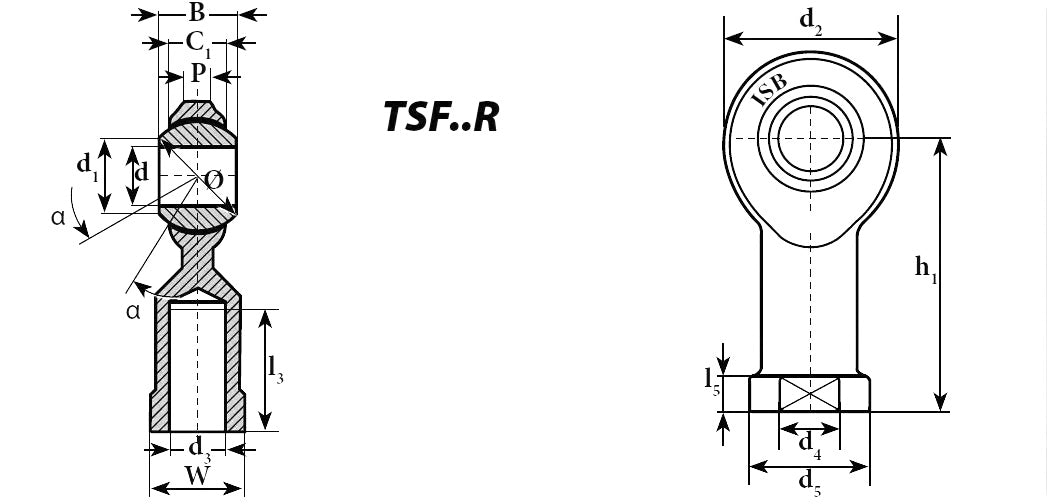

Technical
Technical
| d | 3mm |
|---|---|
| d1 | 7.4mm |
| d2 | 12mm |
| d3 | M 3x0.5mm |
| d4 | 6.5mm |
| d5 | 8mm |
| B | 6mm |
| C1 | 4.5mm |
| h1 | 21mm |
| I3 | 10mm |
| I5 | 3mm |
| P | 2.8mm |
| W | 7mm |
| Ø | 9.3mm |
| α | 13° |
| Static C0 | 1.77KN |
| Weight | 0.007Kg |
