SKU: TMHS100-SKF

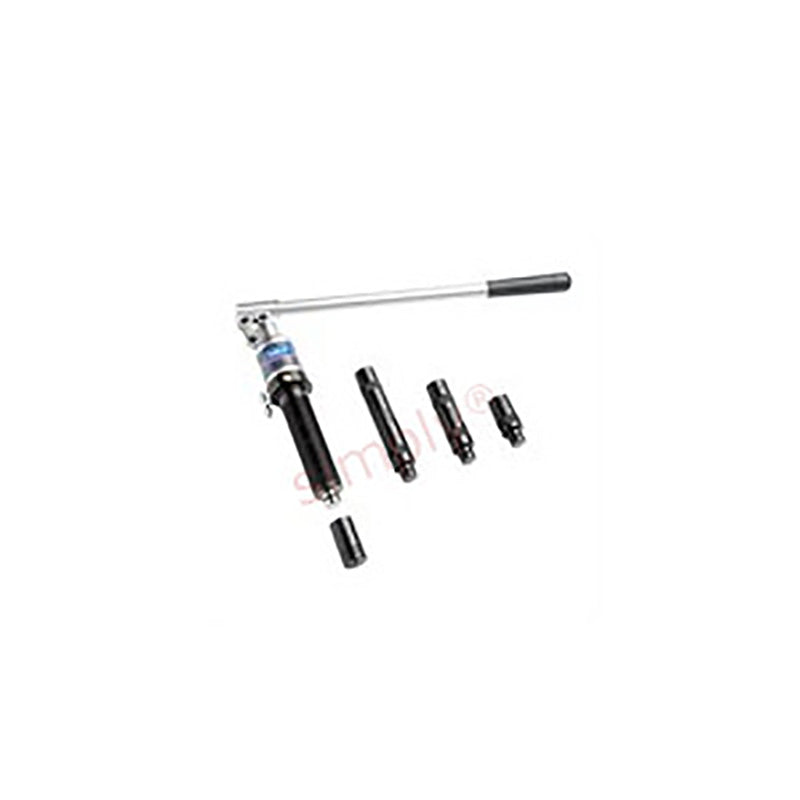

SKF TMHS100 Advanced Hydraulic Spindle 390mm / 15.4 in max. Reach
SKF TMHS100 Advanced Hydraulic Spindle 390mm / 15.4 in max. Reach
Regular price
€661,42
ex VAT
Regular price
Sale price
€661,42
ex VAT
In stock
Price Break
10+
€503,74
19+
€475,44
29+
€469,78
39+
€464,12
49+
€458,46
74+
€452,80
99+
€424,50
199+
€418,84
249+
€413,18
499+
€407,52
999+
€396,20
Share this product
Description
Description
|
SKF Advanced Hydraulic Spindles TMHS Series: The SKF advanced hydraulic spindles generate a high pulling force with very little effort compared to the standard mechanical spindles. They dramatically reduce the time needed to dismount a bearing or other component. The spindles are equipped with integrated hydraulic pumps for force generation. Maximum pulling forces are limited by special safety valves and the hydraulic oil will remain inside the pump. Benefits: Hardened and chrome plated piston with spring return function. Spring-loaded centre point in the nosepiece allows easy centring of the puller on the shaft without damaging shaft centre point. Note: Suitable for pullers with a 1 1/2-16 UN thread |
- Brand / Quality:
- SKF - High Quality
Technical
Technical
| Hydraulic Spindle | 1 Piece |
|---|---|
| Extension Pieces 50, 100 and 150mm | 3 Pieces |
| Nose Piece | 1 Piece |
| Maximum Withdrawal Force | 100 kN (11.2 US ton) |
| Piston Stroke | 80mm (3.1 in.) |
| Body Thread | 1 1/2-16 UN |
| Nose Piece Diameter | 30mm (1.2 in.) |
| Maximum Reach | 390mm (15.4 in.) |
