SKU: T1060-2.7/16DECG-RHP

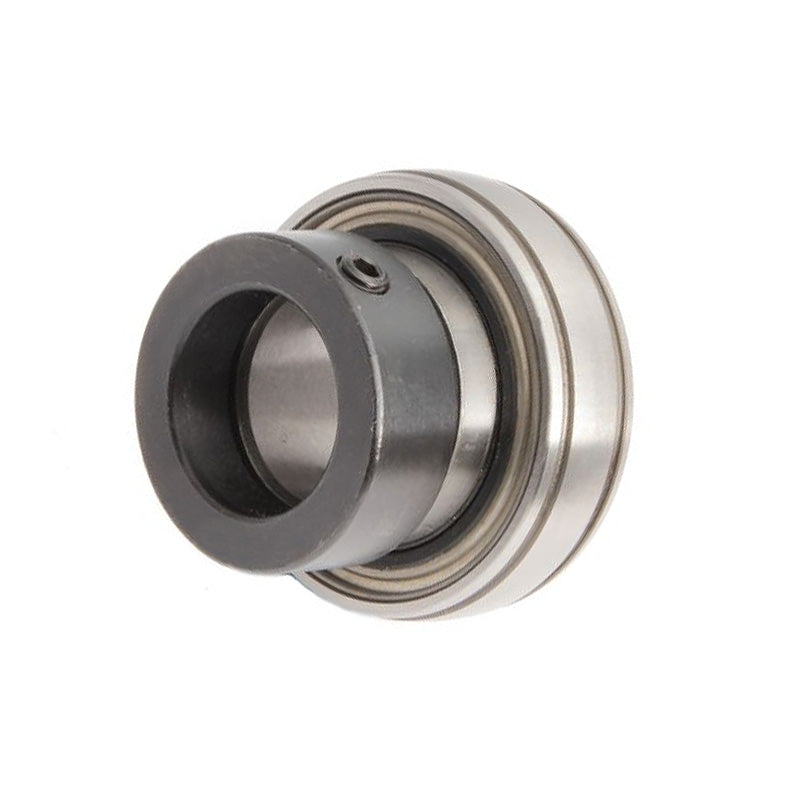

RHP T1060-2-7/16DECG Triple Seal Eccentric Collar Bearing Insert 2-7/16 inch Bore 110mm Outside Diameter
RHP T1060-2-7/16DECG Triple Seal Eccentric Collar Bearing Insert 2-7/16 inch Bore 110mm Outside Diameter
Out of stock
Description
Description
|
RHP T1000DECG Series Triple Sealed Bearing Insert: This insert type is a full width bearing with a spherical outer diameter and is fitted with a triple seal assembly on both sides of the bearing to prevent moisture and dust / particle ingress, they are particularly suited to agricultural applications where harsh weather conditions and environments need to be tolerated for longer periods between maintenance. They have the benefit of being re-lubricatable after installation. There is an eccentric collar and grub screw to allow easy installation and placement prior of the bearing prior to tightened against to the shaft. Benefits: Cost effective solution, re-lubricatable, eccentric collar fixing, Triple sealed |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 61.91mm = 2.437 (2-7/16) inch
- Outside Diameter:
- 110mm
- Style:
- T1060
Technical
Technical
| Bore | 2-7/16 inch |
|---|---|
| D | 4.3307 inch |
| C | 0.984 inch |
| B3 | 3.064 inch |
| s2 | 1.221 inch |
| d2 | 3.312 inch |
| r | 0.059 inch |
| Dynamic load Cr | 48000 N |
| Static load Cor | 33000 N |
| Rec max speed | 500 rpm |
| Weight | 1.81 kg |
