SKU: T1030-1.3/16DECG-RHP

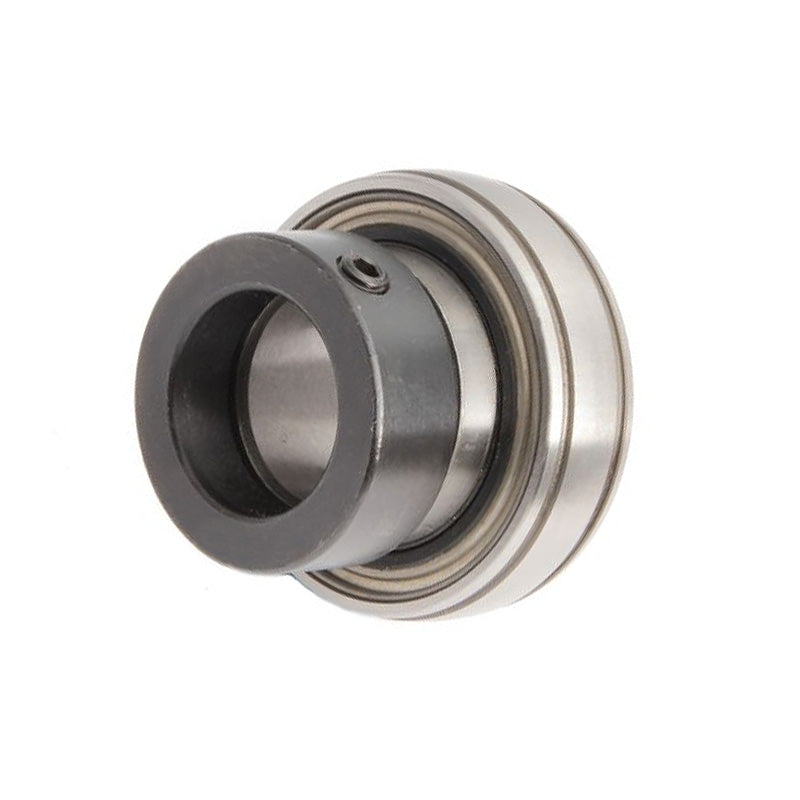

RHP T1030-1-3/16DECG Triple Seal Eccentric Collar Bearing Insert 1-3/16 inch Bore 62mm Outside Diameter
RHP T1030-1-3/16DECG Triple Seal Eccentric Collar Bearing Insert 1-3/16 inch Bore 62mm Outside Diameter
Out of stock
Description
Description
|
RHP T1000DECG Series Triple Sealed Bearing Insert: This insert type is a full width bearing with a spherical outer diameter and is fitted with a triple seal assembly on both sides of the bearing to prevent moisture and dust / particle ingress, they are particularly suited to agricultural applications where harsh weather conditions and environments need to be tolerated for longer periods between maintenance. They have the benefit of being re-lubricatable after installation. There is an eccentric collar and grub screw to allow easy installation and placement prior of the bearing prior to tightened against to the shaft. Benefits: Cost effective solution, re-lubricatable, eccentric collar fixing, Triple sealed |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 30.16mm = 1.187 (1-3/16) inch
- Outside Diameter:
- 62mm
- Style:
- T1030
Technical
Technical
| Bore | 1-3/16 inch |
|---|---|
| D | 2.4409 inch |
| C | 0.709 inch |
| B3 | 1.906 inch |
| s2 | 0.721 inch |
| d2 | 1.75 inch |
| r | 0.039 inch |
| Dynamic load Cr | 19500 N |
| Static load Cor | 11300 N |
| Rec max speed | 850 rpm |
| Weight | 0.53 kg |
