SKU: T1025-15/16G-RHP

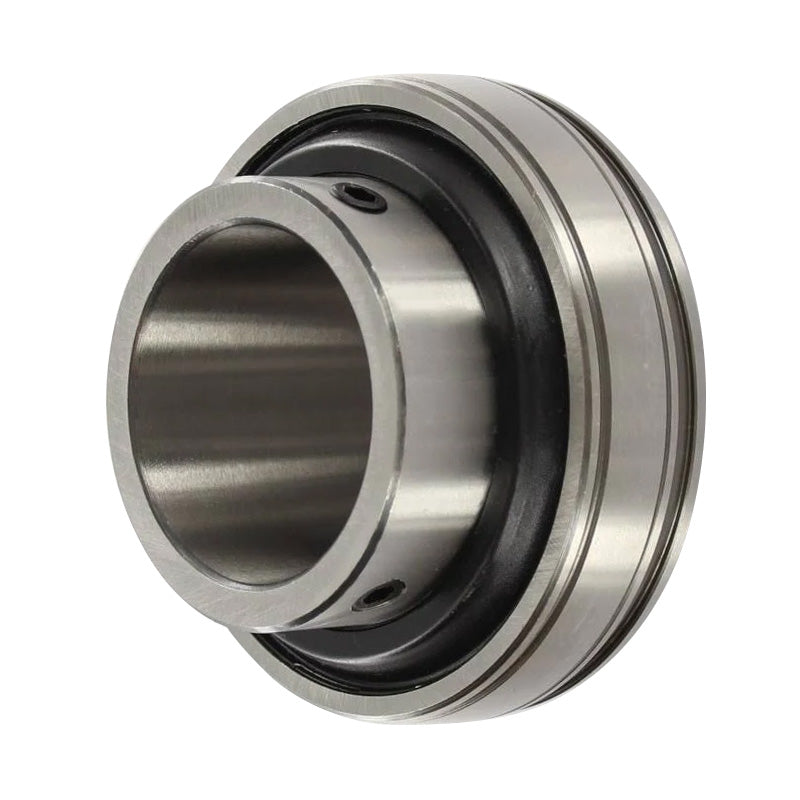

RHP T1025-15/16G Triple Seal Bearing Insert 15/16 inch Bore Grub Screw Type 52mm Outside Diameter
RHP T1025-15/16G Triple Seal Bearing Insert 15/16 inch Bore Grub Screw Type 52mm Outside Diameter
Out of stock
Description
Description
|
RHP T1000G Series Triple Sealed Bearing Insert: This insert type is a full width bearing with a spherical outer diameter and is fitted with a triple seal assembly on both sides of the bearing to prevent moisture and dust / particle ingress, they are particularly suited to agricultural applications where harsh weather conditions and environments need to be tolerated for longer periods between maintenance. They have the benefit of being re-lubricatable after installation. There are 2 grub screws set 120 degrees apart to allow tightening against the shaft after installation. Benefits: Cost effective solution, re-lubricatable, grub screw fixing, Triple sealed |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 23.81mm = 0.937 (15/16) inch
- Outside Diameter:
- 52mm
- Style:
- T1025
Technical
Technical
| Bore | 15/16 inch |
|---|---|
| D | 2.0472 inch |
| C | 0.591 inch |
| B | 1.343 inch |
| s | 0.564 inch |
| d1 | 1.339 inch |
| M | 0.211 inch |
| r | 0.039 inch |
| Dynamic load Cr | 14000 N |
| Static load Cor | 7880 N |
| Rec max speed | 1000 rpm |
| Weight | 0.17 kg |
