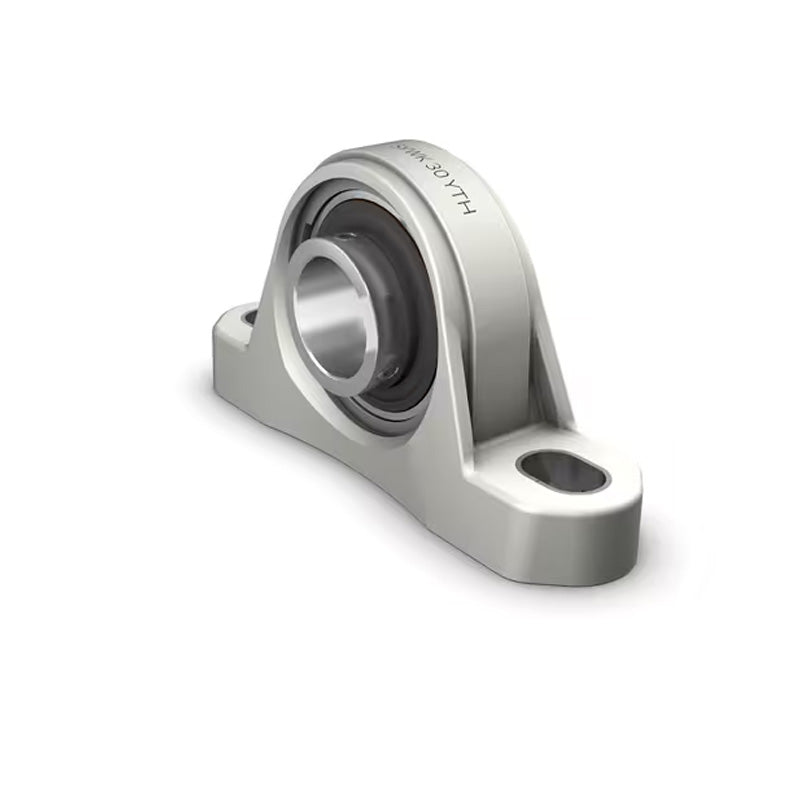

SKF SYKC35NTR/VE495 Plummer Block with Food-Grade Grease Grub Screw 35mm Insert
SKF SYKC35NTR/VE495 Plummer Block with Food-Grade Grease Grub Screw 35mm Insert
Out of stock
Description
Description
|
SKF Y-bearing Plummer Block Units for the Food Industry: This unit is optimised for handling shock loads and high vibration levels. It incorporates a steel coil embedded in the polymer to provide high dimensional stability and excellent strength. The housing of this unit is made of a chemical and corrosion resistant composite material which is designed to withstand frequent washdowns. The non-porous surface resists the accumulation of bacteria-forming food particles and the light-grey colour makes visual inspection easy. These units are lubricated with food-grade grease. Benefits: Designed for the food industry, lubricated with food-grade grease, optimised for handling shock loads and high vibration levels. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 35mm
- Style:
- SYKC
- Bolt Hole Centres:
- 126mm
Technical
Technical
| d | 35mm |
|---|---|
| A | 45mm |
| A1 | 27mm |
| B | 42.9mm |
| H | 93mm |
| H1 | 47.6mm |
| H2 | 19mm |
| J | 126mm |
| L | 164mm |
| N | 21.5mm |
| N1 | 14.5mm |
| G | 12mm |
| s1 | 25.4mm |
| Static load Cr | 15.3 kN |
| Dynamic load Cor | 25.5 kN |
| Fatigue load limit Pu | 0.655 kN |
| Limiting speed | 3200 rpm |
| A5 | 22mm |
| Weight | 0.66 kg |
| Housing | SYKC507N |
| Insert | YAR207-2RF/HV |
| Compatible end cover closed | ECY207 |
