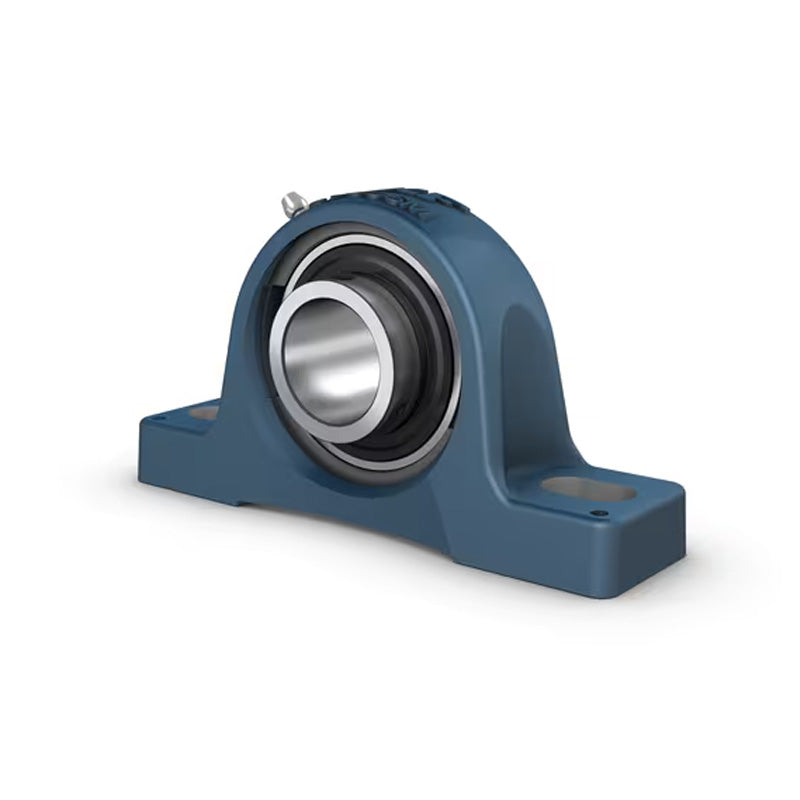

SKF SYJ1TF Cast Iron Plummer Block with Grub Screw Insert 1 inch Bore
SKF SYJ1TF Cast Iron Plummer Block with Grub Screw Insert 1 inch Bore
Out of stock
Description
Description
|
SKF Y-bearing Plummer Block Units with a Cast Housing: These units contain a grey cast iron housing with a grease fitting in the housing which allows it to be re-lubricated. This makes them suitable for bearing arrangements that operate in high levels of contamination, high speeds, high temperatures or relatively heavy loads. The housing design has two oblong holes for the attachment bolts in the base of the housing. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 25.4mm = 1 inch
- Style:
- SYJ
- Bolt Hole Centres:
- 102.5mm
Technical
Technical
| d | 1 inch |
|---|---|
| A | 38mm |
| A1 | 24mm |
| B | 34.1mm |
| H | 70.5mm |
| H1 | 36.5mm |
| H2 | 16mm |
| J | 102.5mm |
| L | 140mm |
| N | 21.5mm |
| N1 | 13mm |
| G | 10mm |
| s1 | 19.8mm |
| Static load Cr | 7.8 kN |
| Dynamic load Cor | 14 kN |
| Fatigue load limit Pu | 0.335 kN |
| Limiting speed | 7000 rpm |
| Weight | 0.72 kg |
| Housing | SYJ505 |
| Insert | YAR205-100-2F |
