SKU: SY60PF-SKF
SKF SY60PF ConCentra Plummer / Pillow Block Housing with 60mm Insert
SKF SY60PF ConCentra Plummer / Pillow Block Housing with 60mm Insert
Out of stock
Description
Description
|

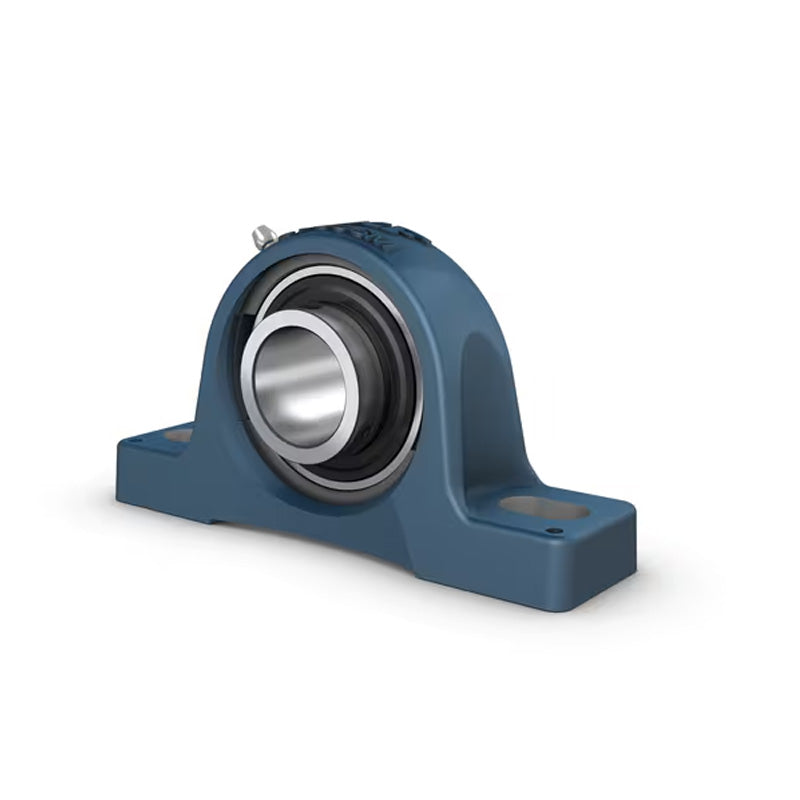

SKF ConCentra Ball Bearing Units: This bearing unit consists of a deep groove ball bearing with the inner ring extended on both sides, an SKF ConCentra stepped sleeve and an SY 500 M series plummer block housing for metric shafts, or an SY 500 U/AH series pillow block housing for inch shafts. Filled with a high-quality, long-lasting grease, maintenance-free operation is provided in most cases. The unit can accommodate up to 2 degrees of initial misalignment if they are relubricated during operation otherwise misalignment of up to 5 degrees can be tolerated. The SKF ConCentra ball bearing units have a unique 360 degree locking mechanism. The near perfect 360 degree grip on the shaft virtually eliminates shaft damage and the possibility of fretting corrosion. Benefits: Tolerates misalignment, filled with high-quality grease |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 60mm
- Style:
- SY
- Bolt Hole Centres:
- 190.5mm
Technical
Technical
| d | 60mm |
|---|---|
| A | 60mm |
| B | 59mm |
| H | 137mm |
| H1 | 69.9mm |
| H2 | 26.5mm |
| J | 190.5mm |
| L | 240mm |
| N | 29.5mm |
| N1 | 18mm |
| G | 16mm |
| s1 | 38mm |
| Static load Cr | 36 kN |
| Dynamic Load Cor | 52.7 kN |
| Fatigue load limit Pu | 1.53 kN |
| Limiting speed | 3400 rpm |
| Weight | 5 kg |
