SKU: SY-72-S-IKO
IKO SY72S Stainless Steel Sealed Cylindrical Cam Yoke Roller 0.625x2.25x1.3125 inch Allow 7-10 Days
IKO SY72S Stainless Steel Sealed Cylindrical Cam Yoke Roller 0.625x2.25x1.3125 inch Allow 7-10 Days
Out of stock
Description
Description
|

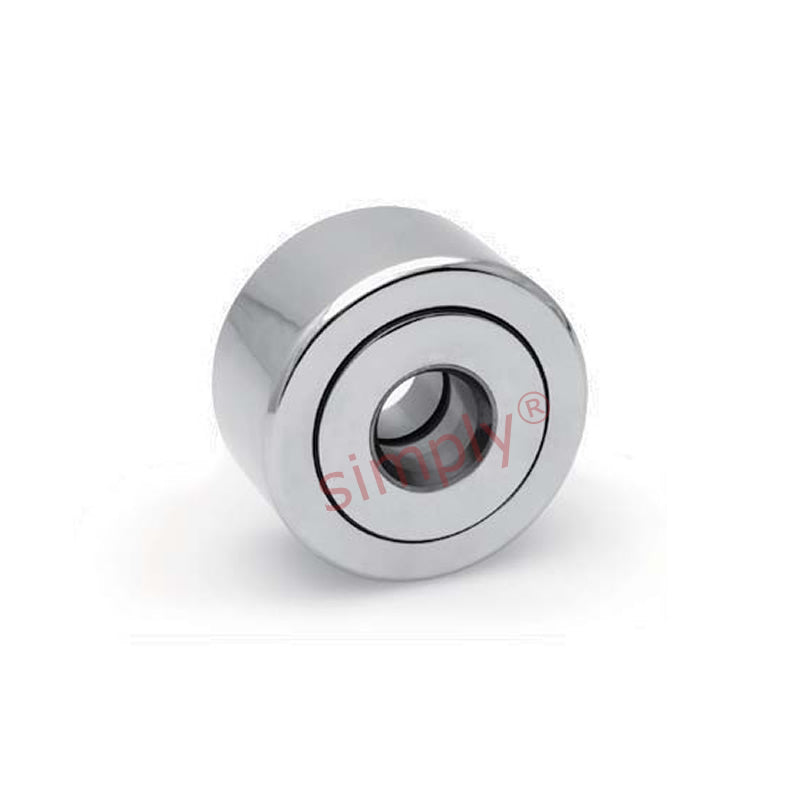

Stainless Steel Sealed Cam Yoke Roller: These bearings are dimensionally interchangeable with standard cam yoke rollers offered by other major manufacturers. The Seal Tight design minimises contamination to keep machinery running longer. These bearings contain a food-grade lubricant to ensure compatibility with any application. Benefits: Minimises contamination, re-lubricatable, high precision manufacturing. Note: Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
- Brand / Quality:
- IKO - High Quality
- Outside Diameter:
- 57.15mm = 2.25 (2-1/4) inch
- Width:
- 33.34mm = 1.3125 inch
Technical
Technical
| A | 2.25 inch |
|---|---|
| B | 0.625 inch |
| C | 1.25 inch |
| D | 1.3125 inch |
| E | 1-13/64 inch |
| F | 3/32 inch |
| Recommended shaft diameter | 0.6247 inch |
| Basic dynamic rating | 7270 lbs |
| Max static capacity | 17600 lbs |
