SKU: SW170-M2400

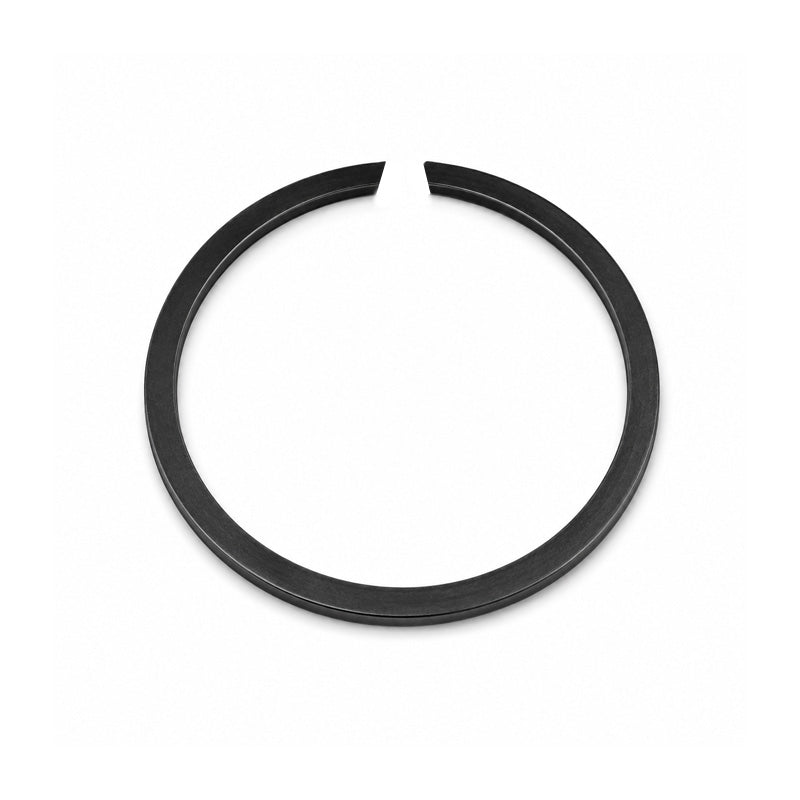

SW170 Snap Ring to Suit 170mm Shaft
SW170 Snap Ring to Suit 170mm Shaft
Equivalent to: DIN5417 DIN 5417 CFS170 CFS-170 2400-170 SW170 SW-170 M2400-170
Out of stock
Description
Description
|
Flat Wire Snap Rings for Shafts: These retainers are designed to fit into a groove in the shaft. Once fitted into the groove the part of the ring protruding from the groove serves to hold an assembly in place. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 165.7mm
- Shaft Size:
- 170mm
Technical
Technical
| d1 | 170mm |
|---|---|
| s | 2.5mm (Tolerance -0.1) |
| b | 4mm (Tolerance -0.1) |
| d3 max. | 165.7mm |
| d2 | 167.4mm (Tolerance - 0.25) |
| m min. | 2.7mm |
| FN | 108 kN |
| FR | 33.5 kN |
| n det x1000 | 0.5 rpm |
