SKU: SUCP.PL.216

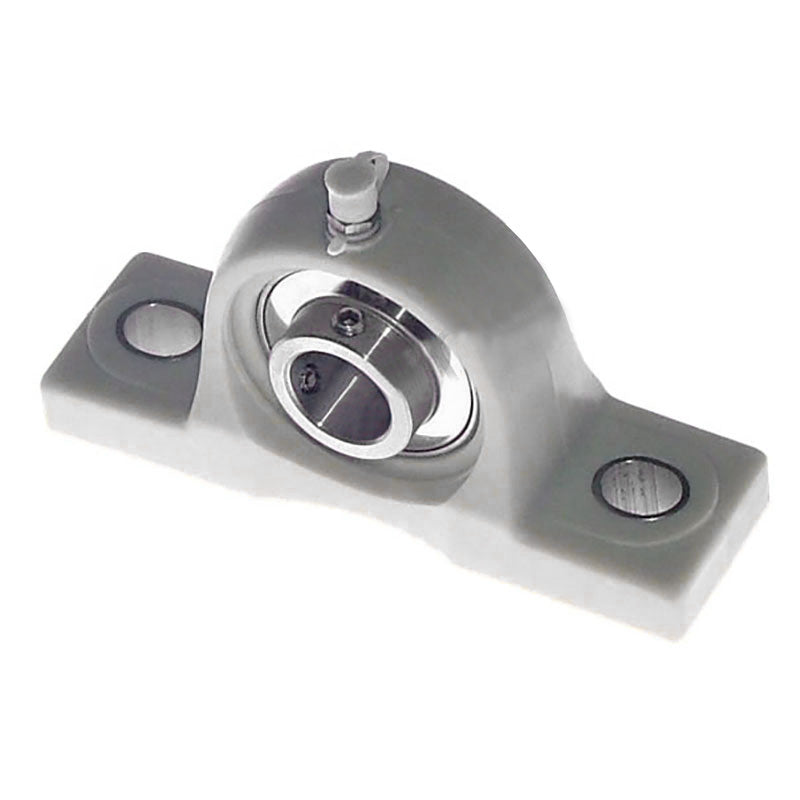

SUCPPL216 Metric Thermo Plastic Two Bolt Pillow / Plummer Block Housing with 80mm Bore Stainless Insert
SUCPPL216 Metric Thermo Plastic Two Bolt Pillow / Plummer Block Housing with 80mm Bore Stainless Insert
Equivalent to: PNP80CR
Out of stock
Description
Description
|
UCP or NP Series Thermo-Plastic Plummer / Pillow Housings: Supplied with a fully sealed stainless steel bearing insert fitted in the plastic housing which has pre-fitted anti crush stainless steel inserts in the bolt holes and also includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Colour may vary. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 80mm
- Temperature Range:
- -35 to 102 deg C
- Style:
- SUCP
- Bolt Hole Centres:
- 232mm
Technical
Technical
| d | 80mm |
|---|---|
| h | 88.9mm |
| a | 292mm |
| e | 232mm |
| b | 78mm |
| s2 | 31mm |
| s1 | 25mm |
| g | 30mm |
| w | 175mm |
| B1 | 82.6mm |
| n | 33.3mm |
| Bolt | 20mm |
| Weight | 9 kg |
| Dynamic load | 5700 kgf |
| Static load | 4550 kgf |
| Temperature Range | -35 to 102 deg C |
| Rec max speed | 2150 rpm |
