SKU: SUCP.PL.214

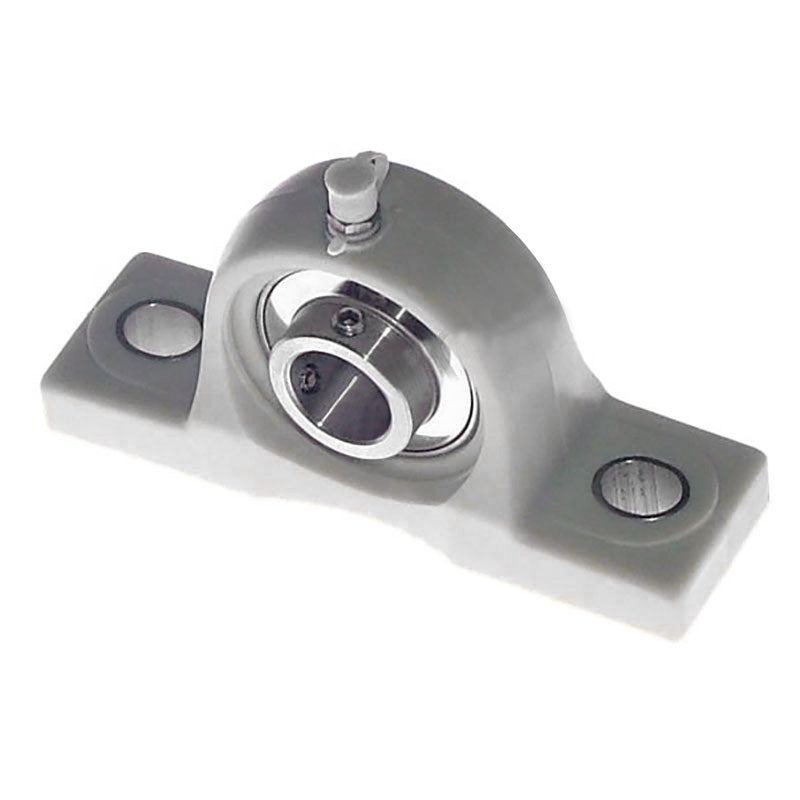

SUCPPL214 Metric Thermo Plastic Two Bolt Pillow / Plummer Block Housing with 70mm Bore Stainless Insert
SUCPPL214 Metric Thermo Plastic Two Bolt Pillow / Plummer Block Housing with 70mm Bore Stainless Insert
Equivalent to: PNP70CR
Out of stock
Description
Description
|
UCP or NP Series Thermo-Plastic Plummer / Pillow Housings: Supplied with a fully sealed stainless steel bearing insert fitted in the plastic housing which has pre-fitted anti crush stainless steel inserts in the bolt holes and also includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Colour may vary. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 70mm
- Temperature Range:
- -35 to 102 deg C
- Style:
- SUCP
- Bolt Hole Centres:
- 210mm
Technical
Technical
| d | 70mm |
|---|---|
| h | 79.4mm |
| a | 266mm |
| e | 210mm |
| b | 72mm |
| s2 | 31mm |
| s1 | 25mm |
| g | 27mm |
| w | 156mm |
| B1 | 74.6mm |
| n | 30.2mm |
| Bolt | 20mm |
| Weight | 7 kg |
| Dynamic load | 4870 kgf |
| Static load | 3810 kgf |
| Temperature Range | -35 to 102 deg C |
| Rec max speed | 2450 rpm |
