SKU: SUCNFL209FG1-SNR

SNR SUCNFL209FG1 Metric Sentinel Thermoplastic Four Bolt Square Flanged Bracket Housing Unit with45mm Bore Insert - Allow 2-3 Days

SNR SUCNFL209FG1 Metric Sentinel Thermoplastic Four Bolt Square Flanged Bracket Housing Unit with45mm Bore Insert - Allow 2-3 Days

Out of stock


Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical

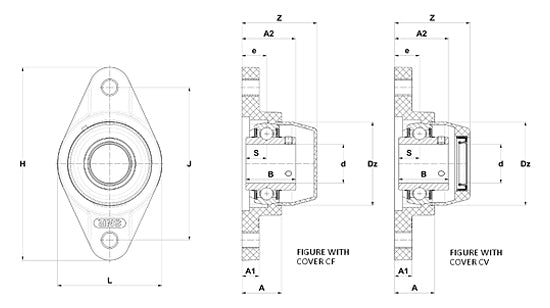

Bore 45mm
A - Housing height 41mm
A1 - Housing foot height / flange height 21mm
A2 - Total height from mounting surface 54.2mm
B - Width of Inner Ring 49.2mm
d - Shaft diameter 45mm
e - Distance mounting surface to bearing centre 24mm
H - Housing length, width or diameter 188mm
J - Mounting holes distance 148.5mm
L - Housing width / diameter 108mm
N - Mounting hole dimension 17mm
S - Distance front side/bearing centre 19mm
C - Dynamic load rating 32.7 kN
C0 - Static load rating 20.4 kN
Operating temperature min. -10 Deg C
Operating temperature max. 80 Deg C
Mass 1.64kg
Recommended tightening torque for set screw 8.3 Nm
