SKU: ST65DEC-RHP

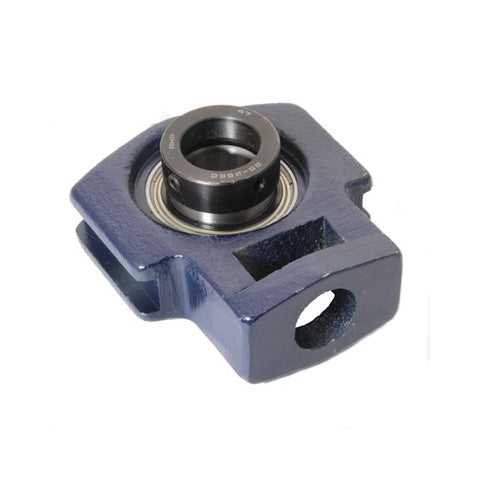

RHP ST65DEC Cast Iron Take Up Unit and 65mm Bore Insert
RHP ST65DEC Cast Iron Take Up Unit and 65mm Bore Insert
Out of stock
Share this product
Description
Description
|
RHP ST DEC Series Cast Iron Take Up Housing Units: Take up type cast iron bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 65mm
- Style:
- ST
Technical
Technical
| Bore | 65mm |
|---|---|
| L | 222.5mm |
| L1 | 137.5mm |
| L2 | 21.5mm |
| L3 | 32mm |
| L4 | 120.5mm |
| L5 | 77mm |
| H | 166.5mm |
| H1 | 113mm |
| H2 | 70mm |
| H3 | 150.8mm |
| N | 42mm |
| A | 70mm |
| A1 | 50.5mm |
| A2 | 27mm |
| B3 | 85.36mm |
| s2 | 34.19mm |
| d2 | 96.82mm |
| Dynamic load | 61000 N |
| Static load | 45000 N |
| Rec max speed | 2450 rpm |
| Weight | 7.9 kg |
| Insert | <a href="advanced_search_result.php?keywords=1070-65DECG+insonly">1070-65DECG Click Here</a> |
| Casting group | 11 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
