SKU: ST2.1/8DEC-RHP

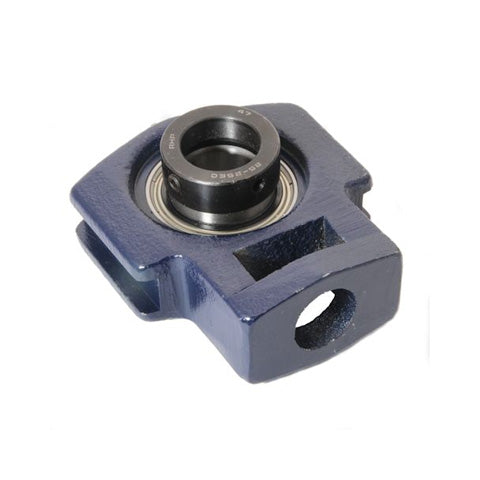

RHP ST2-1/8DEC Cast Iron Take Up Unit and 2-1/8 inch Bore Insert
RHP ST2-1/8DEC Cast Iron Take Up Unit and 2-1/8 inch Bore Insert
Out of stock
Share this product
Description
Description
|
RHP ST DEC Series Cast Iron Take Up Housing Units: Take up type cast iron bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 53.98mm = 2.125 (2-1/8) inch
- Style:
- ST
Technical
Technical
| Bore | 2-1/8 inch |
|---|---|
| L | 7.165 inch |
| L1 | 4.488 inch |
| L2 | 0.748 inch |
| L3 | 1.26 inch |
| L4 | 3.839 inch |
| L5 | 2.756 inch |
| H | 5.748 inch |
| H1 | 3.976 inch |
| H2 | 2.52 inch |
| H3 | 5.118 inch |
| N | 1.378 inch |
| A | 2.5 inch |
| A1 | 1.831 inch |
| A2 | 1.063 inch |
| B3 | 2.813 inch |
| s2 | 1.095 inch |
| d2 | 3 inch |
| Dynamic load | 43500 N |
| Static load | 29200 N |
| Rec max speed | 3100 rpm |
| Weight | 4.2 kg |
| Insert | <a href="advanced_search_result.php?keywords=1055-2-1/8DECG+insonly">1055-2-1/8DECG Click Here</a> |
| Casting group | 9 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
