SKU: SSUCP.218-56

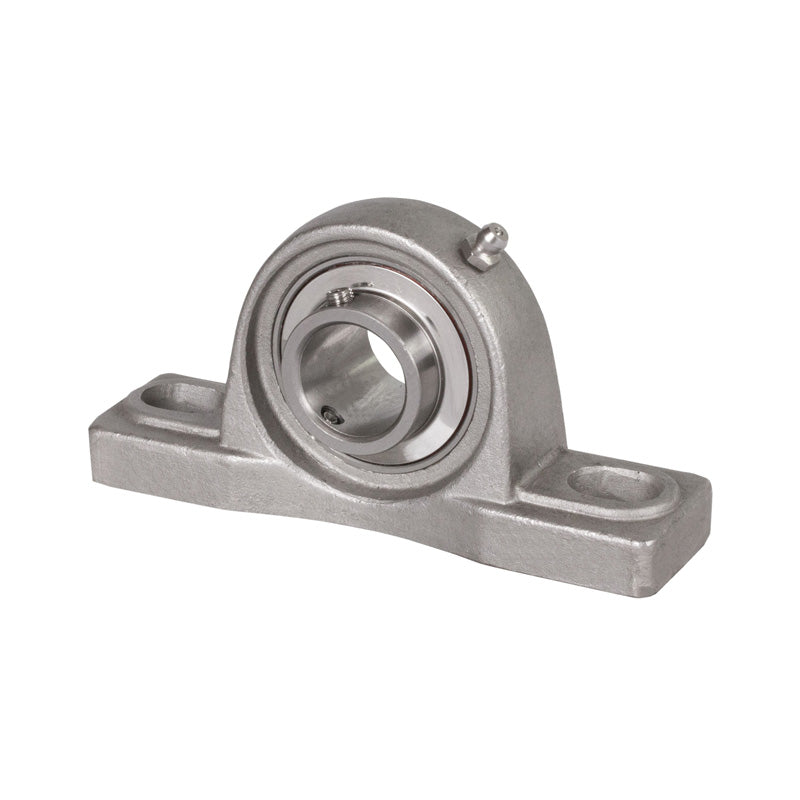

SSUCP218-56 Imperial Stainless Steel Two Bolt Pillow / Plummer Block Housing with 3-1/2 inch Bore Stainless Insert
SSUCP218-56 Imperial Stainless Steel Two Bolt Pillow / Plummer Block Housing with 3-1/2 inch Bore Stainless Insert
Out of stock
Description
Description
|
UCP or NP Series Stainless Steel Plummer / Pillow Housings: Supplied with a fully sealed stainless steel bearing insert fitted in the stainless steel housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved, exceptionally strong and durable Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 88.9mm = 3.5 (3-1/2) inch
- Style:
- SSUCP
- Bolt Hole Centres:
- 262mm
Technical
Technical
| d | 3-1/2 inch |
|---|---|
| h | 101.6mm |
| a | 327mm |
| e | 262mm |
| b | 88mm |
| s2 | 33mm |
| s1 | 27mm |
| g | 34mm |
| w | 200mm |
| B1 | 96mm |
| n | 39.7mm |
| Bolt | 22mm |
| Weight | 14.3 kg |
| Dynamic load | 7500 kgf |
| Static load | 6170 kgf |
