SKU: SSUC.217-52

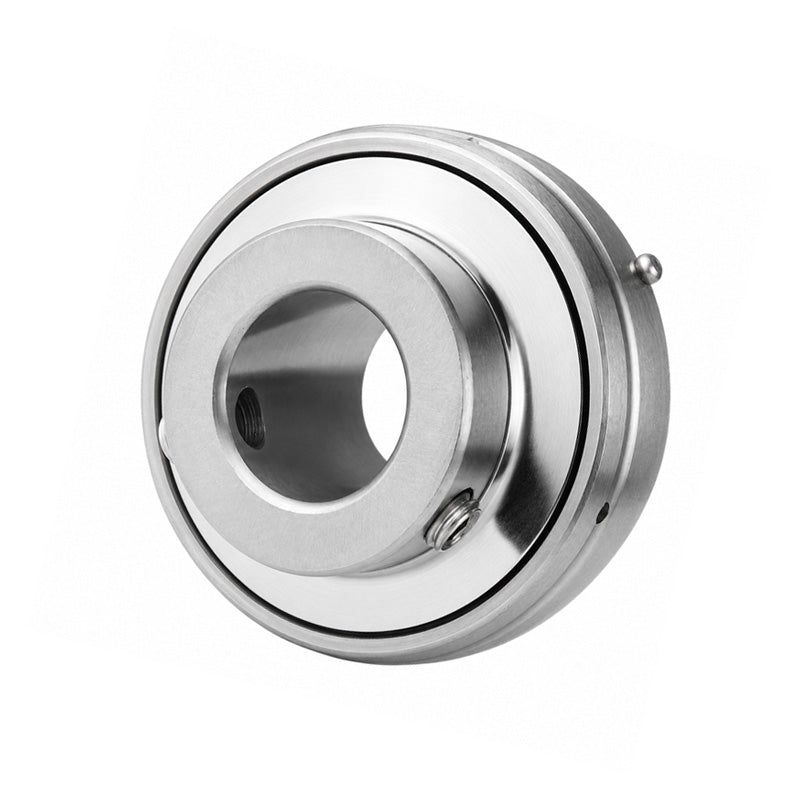

SSUC217-52 Imperial Stainless Steel Bearing Insert with 3-1/4 inch Bore 150mm Outside Dia
SSUC217-52 Imperial Stainless Steel Bearing Insert with 3-1/4 inch Bore 150mm Outside Dia
Out of stock
Description
Description
|
SSUC or 10-G Series Stainless Steel Insert: Stainless steel sealed bearing insert with 2 grub screws to allow tightening against the shaft once fitted. This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing. Benefits: Cost effective stainless bearing insert, re-lubricatable, grub screw fixing, food safe and approved Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 82.55mm = 3.25 (3-1/4) inch
- Outside Diameter:
- 150mm
- Style:
- SSUC
Technical
Technical
| d | 3-1/4 inch |
|---|---|
| D | 150mm |
| Bi | 85mm |
| Be | 35mm |
| n | 34.1mm |
| m | 51.6mm |
| G | 14mm |
| Grub screw | 7/16"-20 UNF |
| Weight | 3.66 kg |
| Dynamic load | 6600 kgf |
| Static load | 5320 kgf |
