SKU: SSKM40-EU

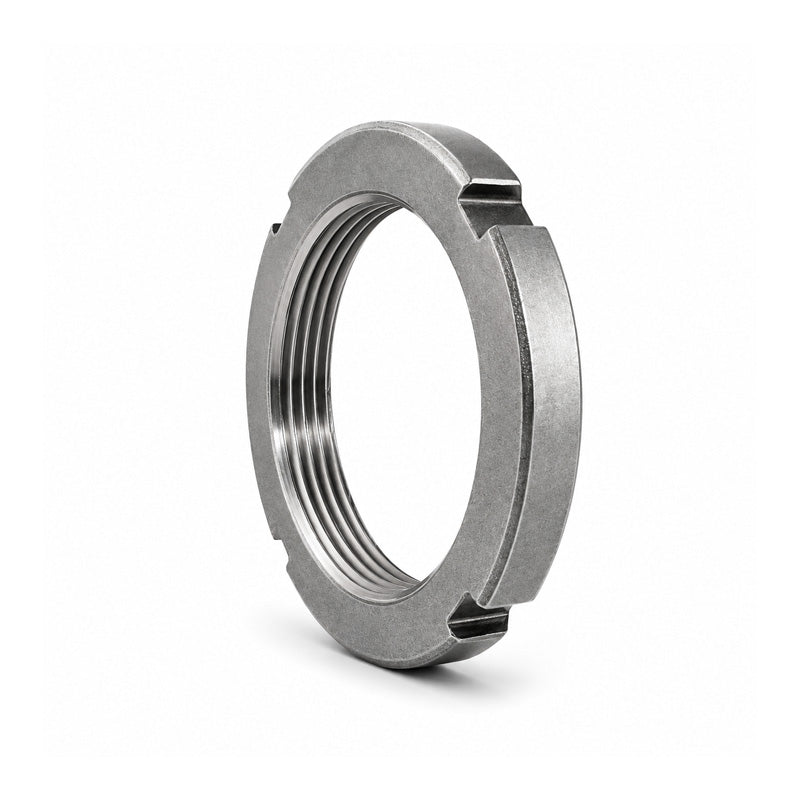

SSKM40 Stainless Steel Lock Nut (Lock Washer Type) M200x3mm
SSKM40 Stainless Steel Lock Nut (Lock Washer Type) M200x3mm
Out of stock
Description
Description
|
Lock Nuts: Are supplied in a wide range of sizes and are often referred to as shaft nuts, lock nuts or withdrawal nuts depending on their use. They are used to securely locate bearings and other components onto shafts as well as facilitate the mounting of taper bore bearings onto shafts with the use of adaptor sleeves or withdrawal sleeves. Benefits: Efficient, secure, inexpensive, removable and re-useable |
- Brand / Quality:
- EU Budget - Economy Quality
- Thread Size:
- M200x3
Technical
Technical
| G | M200x3mm |
|---|---|
| d1 | 226mm |
| d3 | 250mm |
| B | 29mm |
| b | 18mm |
| h | 8mm |
| Static axial load capacity | 735 kN |
| Weight | 3.37 kg |
| Lock nut | KM40 |
| Appropriate locking washer | MB40 |
| Appropriate spanner | TMFN30-40 |
