SKU: SS.SA205-16G

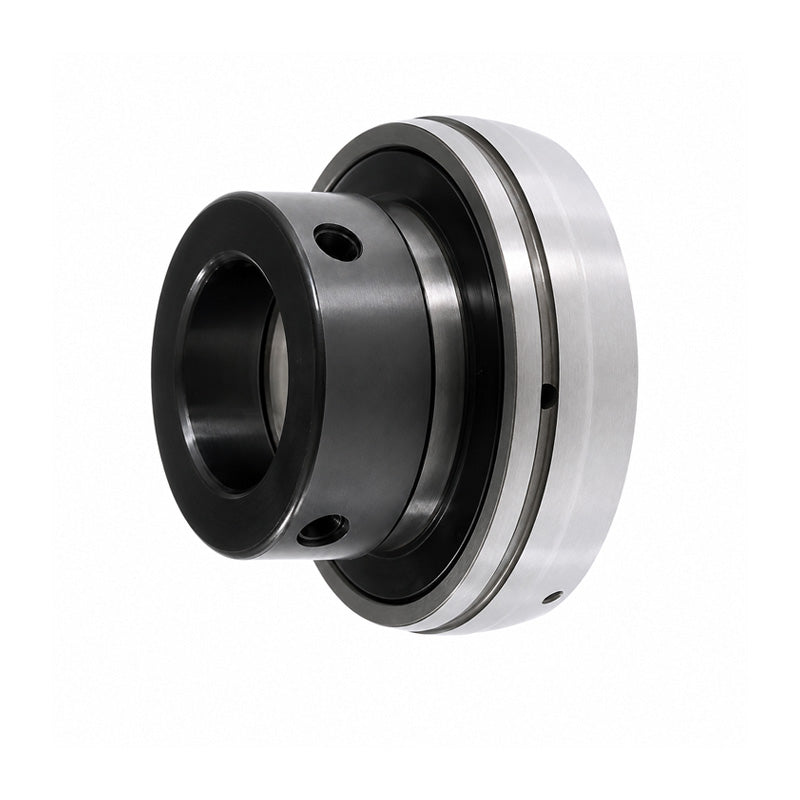

SSSA205-16G Stainless Steel Imperial Bearing Insert with Eccentric Collar 1 inch Bore 52mm Outside Dia
SSSA205-16G Stainless Steel Imperial Bearing Insert with Eccentric Collar 1 inch Bore 52mm Outside Dia
Out of stock
Share this product
Description
Description
SA Stainless Steel Series Eccentric Collar Type Insert: Sealed bearing insert with eccentric shaft locking collar and grub screws to allow tightening against the shaft once fitted. This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing.
Benefits: Cost effective bearing insert, locking collar and grub screw fixing, secure shaft fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25.4mm = 1 inch
- Outside Diameter:
- 52mm
Technical
Technical
| Shaft Dia | 1 inch |
|---|---|
| Be | 15mm |
| D | 52mm |
| z | 21.5mm |
| n | 7.5mm |
| m | 14mm |
| Bi | 31mm |
| K | 38.1mm |
| H | 13.5mm |
| Dynamic Load Rating | 1100 kgf |
| Static Load Rating | 710 kgf |
| Weight | 0.22kg |
