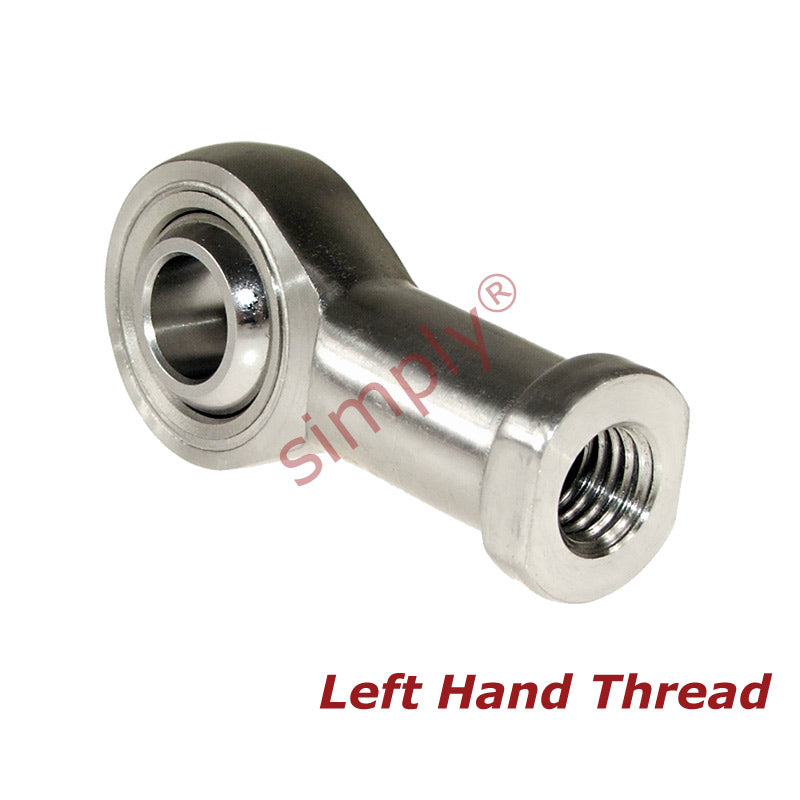

Budget SSPHS17L Left Hand Stainless Steel / PTFE Lined Plain Female Rod End 17mm Bore M16x1.5 Thread

Name: Budget SSPHS17L Left Hand Stainless Steel / PTFE Lined Plain Female Rod End 17mm Bore M16x1.5 Thread
Brand: Gen
SKU: SS.PHS17L.EU
Availability: OutOfStock

Out of stock

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Stainless Steel Maintenance Free Female Rod End with PTFE Liner: LEFT hand thread female rod end consisting of AISI 420 Stainless Steel body with an AISI 440C Stainless Steel ball running in a PTFE maintenance free liner captive in an AISI 304 Stainless Steel ball mount.
Benefits: Cost effective replacement bearing, sliding surfaces are steel against PTFE, maintenance free
Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request.

Brand / Quality:: EU Budget - Economy Quality
Thread Size:: M16x1.5
Thread M / F:: Female
Thread Direction:: Left Hand
Inside Diameter:: 17mm
Material:: PTFE Lined

Technical

d	17mm
B	22mm
r1	0.6mm
C1	16mm
d1 max	20.6mm
d2	40mm
d3	M16x1.5
h1	67mm
L3	34mm
L4	87mm
L5	10mm
d4	24mm
d5	31mm
S	27mm
Ball diameter	1-3/16 inch
Dynamic load Cr	23.8mm
Static load Cor	28.4mm
Max angle α	14
Weight	0.259 kg
