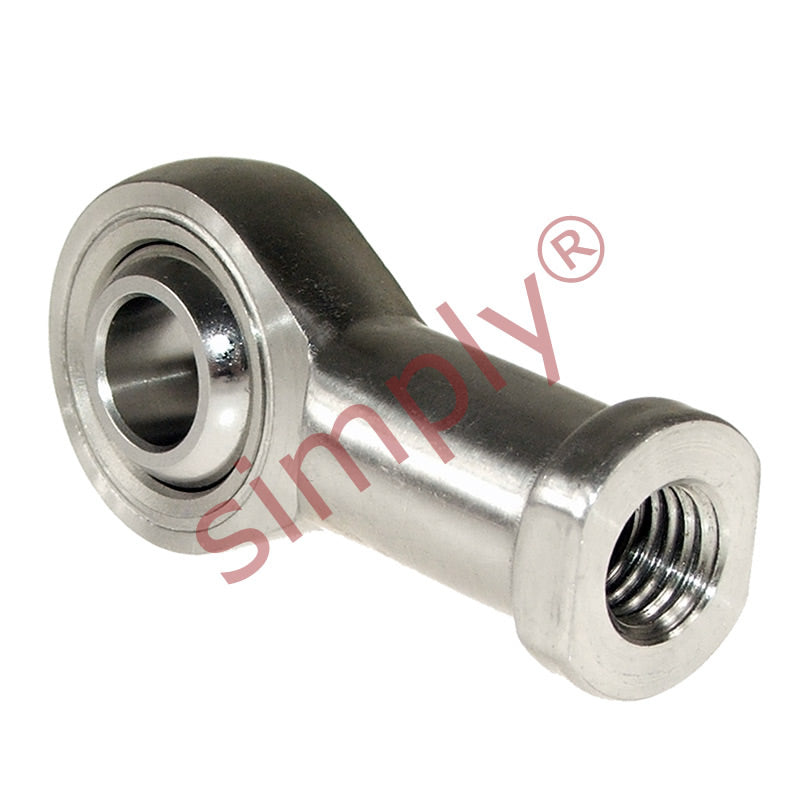

Budget SSPHS15 Right Hand Stainless Steel / PTFE Lined Plain Female Rod End 15mm Bore M14x2 Thread

Name: Budget SSPHS15 Right Hand Stainless Steel / PTFE Lined Plain Female Rod End 15mm Bore M14x2 Thread
Brand: Gen
SKU: SS.PHS15.EU
Availability: OutOfStock

Out of stock

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Stainless Steel Maintenance Free Female Rod End with PTFE Liner: Right hand thread female rod end consisting of AISI 420 Stainless Steel body with an AISI 440C Stainless Steel ball running in a PTFE maintenance free liner captive in an AISI 304 Stainless Steel ball mount.
Benefits: Cost effective replacement bearing, sliding surfaces are steel against PTFE, maintenance free
Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request.

Brand / Quality:: EU Budget - Economy Quality
Thread Size:: M14x2
Thread M / F:: Female
Thread Direction:: Right Hand
Inside Diameter:: 15mm
Material:: PTFE Lined

Technical

d	15mm
B	20mm
r1	0.6mm
C1	14mm
d1 max	18.1mm
d2	36mm
d3	M14x2
h1	61mm
L3	30mm
L4	79mm
L5	8mm
d4	21mm
d5	26mm
S	22mm
Ball diameter	1-1/16 inch
Dynamic load Cr	19.2mm
Static load Cor	23.6mm
Max angle α	16
Weight	0.186 kg
