SKU: SNL3068-SKF

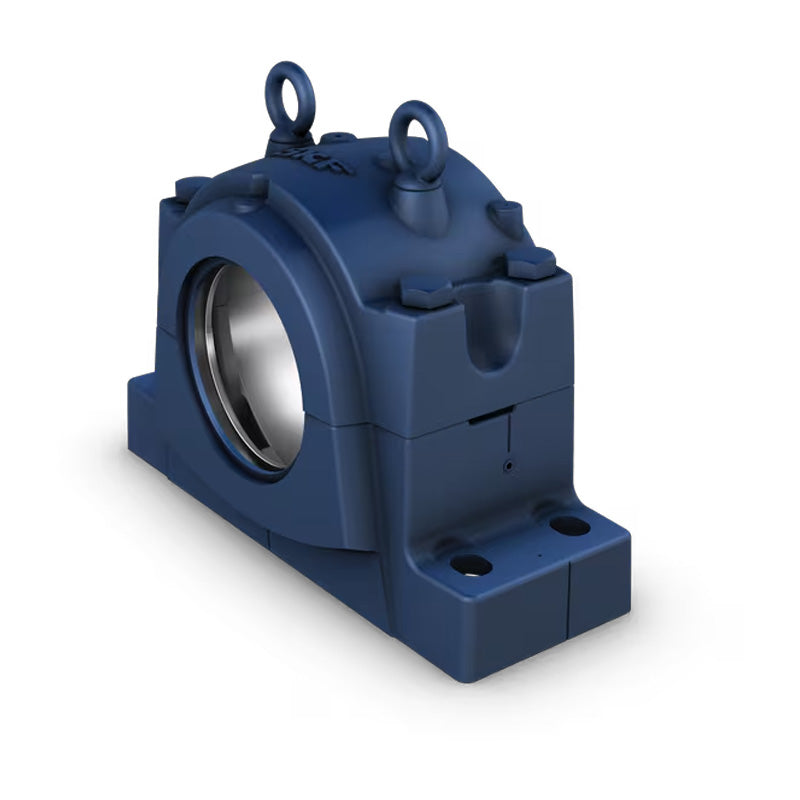

SKF SNL3068 Cast Iron Split Pillow Block Housing
SKF SNL3068 Cast Iron Split Pillow Block Housing
Equivalent to: SE3068
Out of stock
Description
Description
|
SKF SNL Split Plummer Block Housings: SNL plummer block housings in the 30, 31 and 32 series are robust and suitable for tough operating conditions. They allow maximum service life to be achieved with the incorporated bearings with less need for maintenance. Benefits: Cost-effective bearing arrangements can be made with different housing variants and seal designs, easy installation. |
- Brand / Quality:
- SKF - High Quality
- Bolt Hole Centres:
- 750mm
Technical
Technical
| da | 320mm |
|---|---|
| A | 370mm = 14.57 inch |
| A1 | 330mm = 12.99 inch |
| A2 | 380mm = 14.96 inch |
| A3 | 465mm = 18.31 inch |
| X | 23mm = 0.91 inch |
| H | 631mm = 24.84 inch |
| H1 | 320mm = 12.6 inch |
| H2 | 115mm = 4.53 inch |
| L | 880mm = 34.65 inch |
| J | 750mm = 29.53 inch |
| J1 | 200mm = 7.87 inch |
| S | 156mm = 6.14 inch |
| G | 36mm = 1-1/2 inch |
| Weight | 339 kg |
