SKU: SNL1309TG-SKF

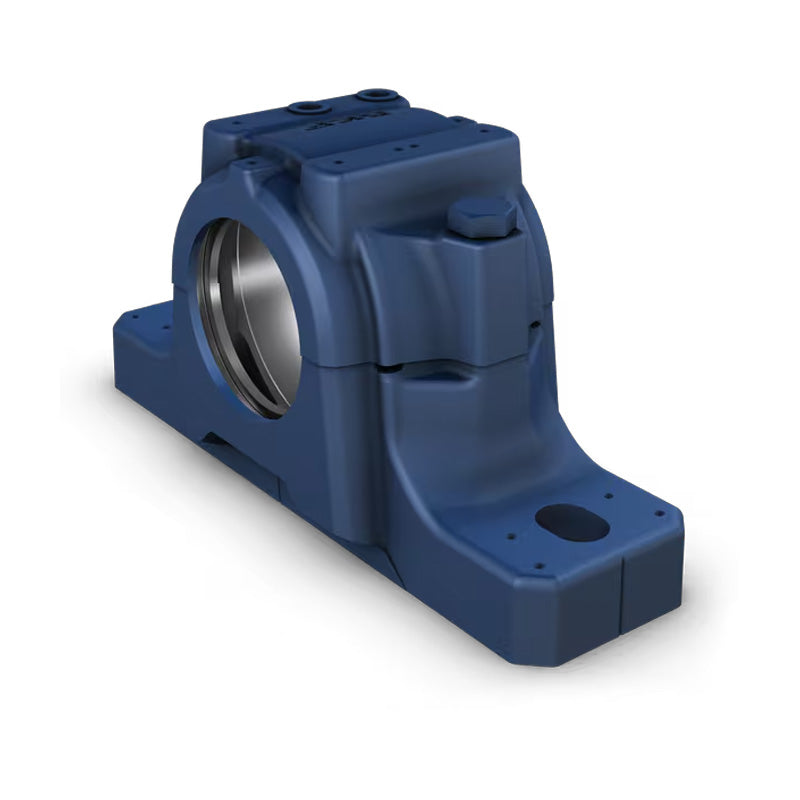

SKF SNL1309TG Cast Iron Split Pillow Block Housing for Bearings with Cylindrical Bore Complete Assembly
SKF SNL1309TG Cast Iron Split Pillow Block Housing for Bearings with Cylindrical Bore Complete Assembly
Equivalent to: SE1309TG
Out of stock
Description
Description
|
SKF SNL Split Plummer Block Housings: These plummer block housings enable the full service life capability of the incorporated bearings to be used with less need for maintenance. This supports efforts of the user to further reduce maintenance costs. As the housings are very stiff, they are insensitive to uncontrolled and excessive tightening of the attachment bolts. These housings are made of grey cast iron and feature two attachment bolts. Benefits: A wide range of different seal types available, easy installation. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 45mm
- Bolt Hole Centres:
- 210mm
Technical
Technical
| Housing | SNL511-609 |
|---|---|
| Standard Seal Package | TSN309G |
| Bearing | 1309E |
| Fixing Rings | 2 x FRB9.5/100 |
| End Cover | ASNH511-609 |
| da | 45mm |
| db | 55mm |
| A | 3-3/4 inch = 95mm |
| A1 | 2-3/4 inch = 70mm |
| A2 | 4-1/4 inch = 107mm |
| A3 | 6-11/16 inch = 172mm |
| H | 5 inch = 128mm |
| H1 | 2.756 inch = 70mm |
| H2 | 1-1/8 inch = 28mm |
| J Max | 8-7/16 inch = 215mm |
| J Min | 8-1/8 inch = 205mm |
| J | 8-5/16 inch = 210mm |
| L | 10-1/16 inch = 255mm |
| N | 1 inch = 24mm |
| N1 | 3/4 inch = 18mm |
| G | 5/8 inch = 16mm |
| Weight | 5.45 kg |
