SKU: SLFE1.1/2A-RHP

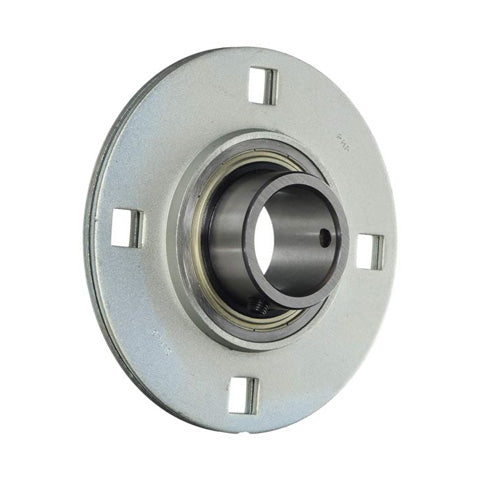

RHP SLFE1-1/2A 4 Bolt Round Pressed Steel Bearing Housing and 1-1/2 inch Bore Insert
Out of stock
Share this product
Description
|
RHP SLFE A Series Round Pressed Steel Bearing Housings: Supplied with a flat back insert these galvanized steel construction housings are a simple economical housed bearing solution. Designed for light to medium duty applications they can be bolted to sheet metal frameworks or even timber if required. The supplied sealed bearing insert has grub screws for securing to the shaft. Once assembled the bearing remains fairly rigid in the housing. The inserts are also available separately. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Style:
- SLFE
- Pitch Circle Diameter:
- 118.999mm = 4.685 inch

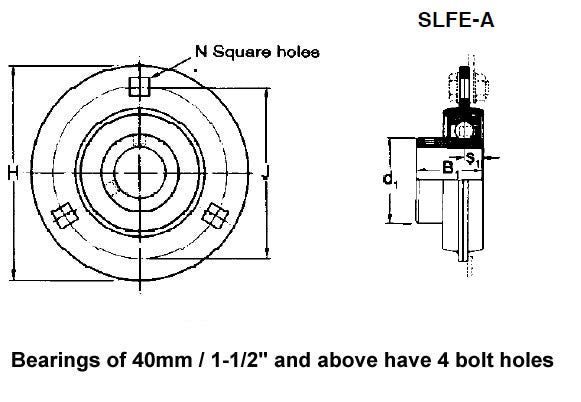

Technical
| Bore | 1-1/2 inch |
|---|---|
| H | 5.819 inch |
| H2 | 3.583 inch |
| J | 4.685 inch |
| N | 0.531 inch |
| A | 0.394 inch |
| A1 | 0.276 inch |
| B | 1.938 inch |
| B1 | 1.621 inch |
| B2 | 1.718 inch |
| B3 | 2.218 inch |
| s | 0.752 inch |
| s1 | 0.435 inch |
| s2 | 0.845 inch |
| d1 | 2.075 inch |
| d2 | 2.374 inch |
| Max radial housing load | 7550 N |
| Rec max speed | 2000 rpm |
| Weight | 1.5 kg |
| Casting group | 1040 |
