SKU: SLC2.3/8DEC-RHP

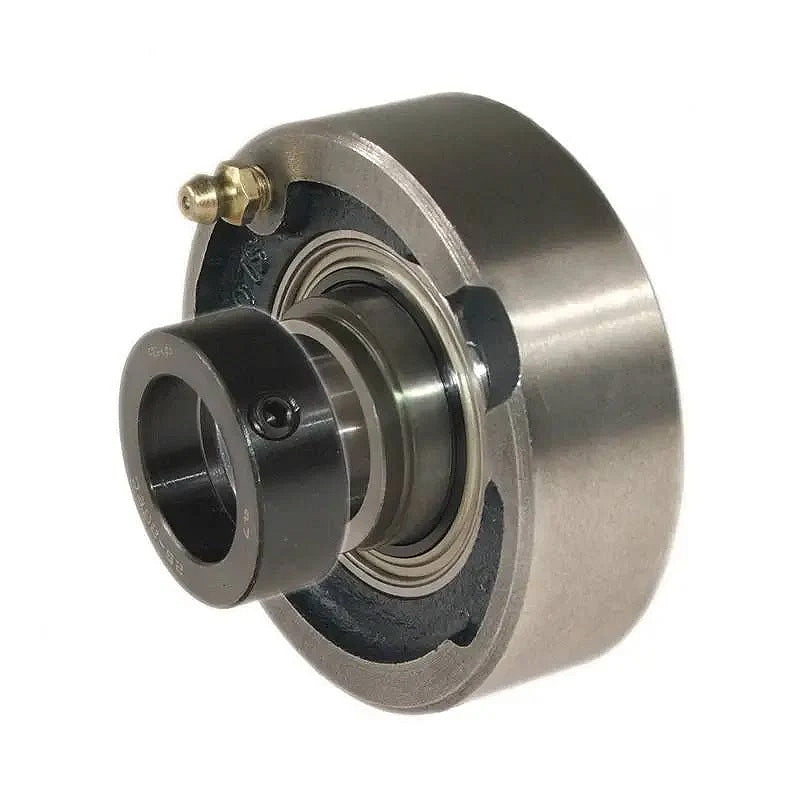

RHP SLC2-3/8DEC Cast Iron Cartridge Unit with 2-3/8 inch Bore Insert 149.25mm Outside Diameter
RHP SLC2-3/8DEC Cast Iron Cartridge Unit with 2-3/8 inch Bore Insert 149.25mm Outside Diameter
Out of stock
Share this product
Description
Description
|
RHP SLC DEC Series Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 60.33mm = 2.375 (2-3/8) inch
- Outside Diameter:
- 149.25mm
- Style:
- SLC
Technical
Technical
| Bore | 2-3/8 inch |
|---|---|
| L | 5.876 inch |
| A | 1.625 inch |
| A3 | 2.653 inch |
| B3 | 3.064 inch |
| s2 | 1.221 inch |
| d2 | 3.312 inch |
| Dynamic load Cr | 48000 N |
| Static load Cor | 33000 N |
| Rec max speed | 2800 rpm |
| Weight | 4.4 kg |
| Insert | <a href="advanced_search_result.php?keywords=1060-2-3/8DECG+insonly">1060-2-3/8DECG Click Here</a> |
| Casting group | 10 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
