SKU: SLC1DEC-RHP

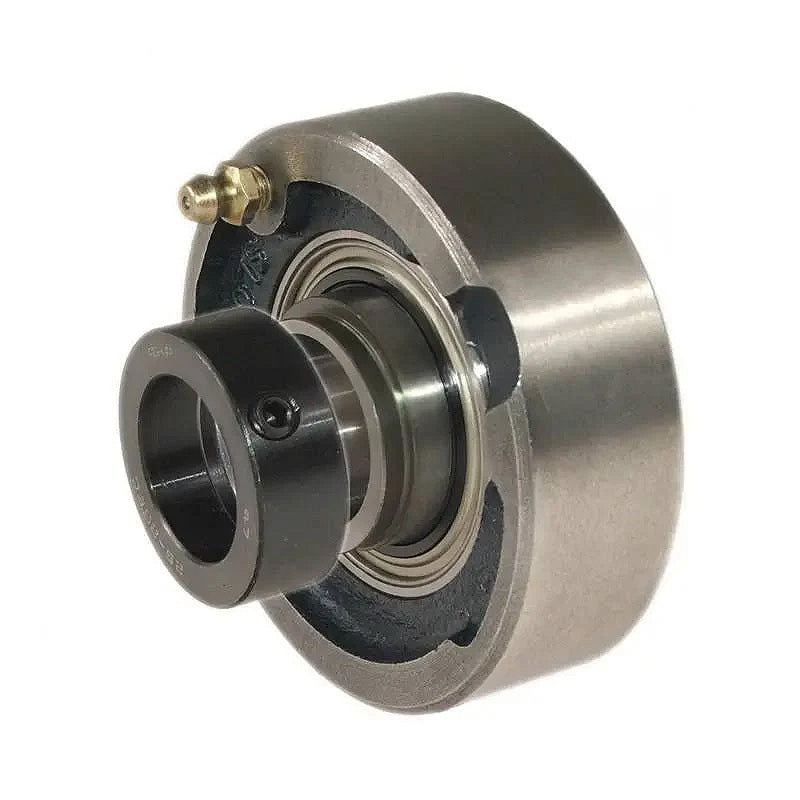

RHP SLC1DEC Cast Iron Cartridge Unit with 1 inch Bore Insert 79.4mm Outside Diameter
RHP SLC1DEC Cast Iron Cartridge Unit with 1 inch Bore Insert 79.4mm Outside Diameter
Out of stock
Share this product
Description
Description
|
RHP SLC DEC Series Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 25.4mm = 1 inch
- Outside Diameter:
- 79.4mm
- Style:
- SLC
Technical
Technical
| Bore | 1 inch |
|---|---|
| L | 3.126 inch |
| A | 1.031 inch |
| A3 | 1.577 inch |
| B3 | 1.748 inch |
| s2 | 0.689 inch |
| d2 | 1.5 inch |
| Dynamic load Cr | 14000 N |
| Static load Cor | 7880 N |
| Rec max speed | 6250 rpm |
| Weight | 0.8 kg |
| Insert | <a href="advanced_search_result.php?keywords=1025-1DECG+insonly">1025-1DECG Click Here</a> |
| Casting group | 3 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
